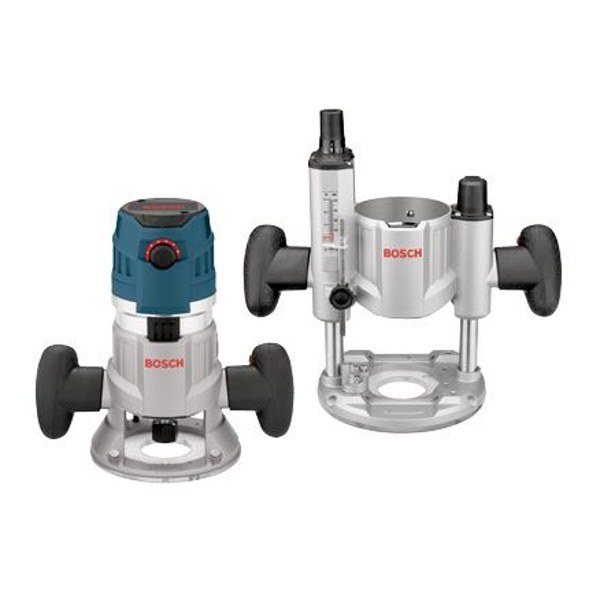

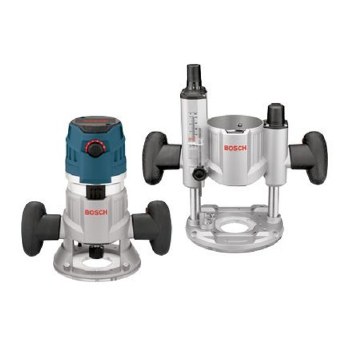

2.3HP ELEC ROUTER COMBO KIT

2.3 HP VS Router Combo Kit

Includes:

Motor

Fixed Base (MRF01)

Plunge base (MRP01)

1/4" Self-Releasing Collet Chuck -- 2 610 906 283

1/2" Self-Releasing Collet Chuck -- 2 610 906 284

16mm Shaft Wrench -- 2 610 991 388

24mm Collet Nut Wrench-- 2 610 992 417

T-Handle Hex Height Adjustment Wrench -- 2610923193

Carrying Case -- 2 610 004 484

Pack of 3 M4 Screws for table mounting - 2610005966

10,000-25, 000 RPM; 2.3 HP (Max tool)

Trigger control system - trigger power switch located in handle for enhanced control

Smooth plunge action, spring-lock plunge lever, and depth rod for easy and precise plunge routing

Afterlock microfine depth adjustment - easy & precise adjustments at any plunge setting

Versatile fixed-base depth adjustment - features continuous microfine adjustment range & wrench for adjustments through top of optional router table

Always-on LED lighting - for enhanced visibility in bit area

Precision centering design – makes it easy to keep bit on cut line when using jigs, templets, dovetail fixtures and similar guidance devices

Two-stage quick clamp system - for fast tool-free conversion

Soft Start Technology — reduces start-up torque

Variable speed dial — for matching speed to workpiece and task

Constant Response™ circuitry — maintains constant speed under load

Contoured soft grip handles — for enhanced control and comfort

Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern

Cord swivel - for added mobility

Rugged carrying case has compartments for all included items

Amperage: 15

Base Diameter: 6" Fixed/ 7" Plunge

Case Type: Hard plastic

Collet Capacity: 1/2" and 1/4"

Cord Length: 10 ft

FixedBase Depth Range: 1-5/8"

Height: 9.5"

Max. Motor HP: 2.3

No Load RPM: 10,000-25,000

Plunge Depth: 3" (75mm)

Rating: 120V AC

Subbase Opening: 2"

Voltage: 120V

Warranty: Limited 1-Year Warranty
