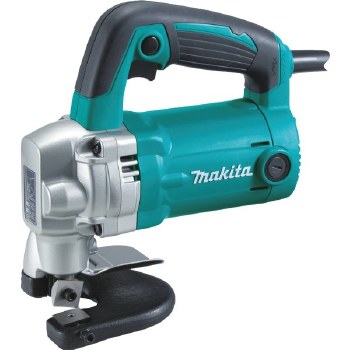

10 GAUGE SHEAR

10 Gauge Shear

Includes:

• (1) Hex Wrench (783202-0)

• (1) Shear Blade Set, JS3201 (792287-5)

• (1) Thickness Gauge (123456)

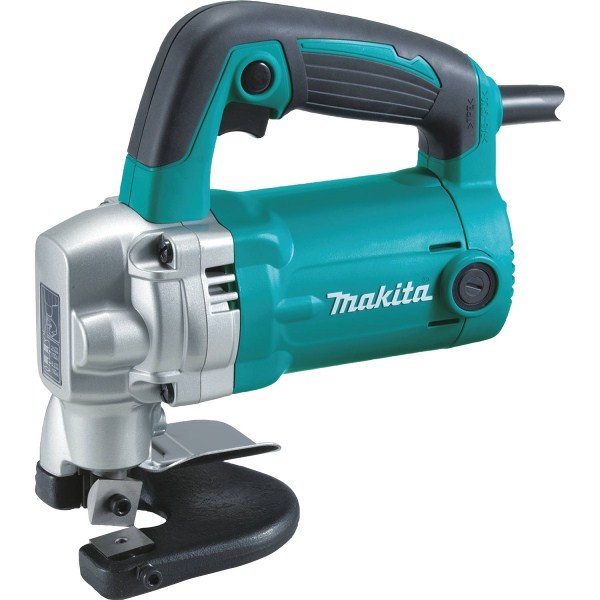

The Makita 10 Gauge Shear (model JS3201) combines power and improved ergonomics for a range of metal cutting applications. The powerful 6.2 AMP motor delivers 1,600 SPM, with a minimum cutting radius of 2” for precision applications. Additional features include a lock-on switch for continuous operation, and a built-in thickness gauge for added convenience.

The JS3201 weighs only 7.4 lbs., with a well balanced design and rubberized soft grip handle for greater comfort. The JS3201 is engineered for cutting sheet metal and metal decking, and is ideal for a full range of applications including production sheet metal, architectural sheet metal, sheet metal fabrication, decking, roofing, signs, and more.

Specifications:

• Capacity (aluminum, ga.) : 9 ga.

• Capacity (mild steel, ga.) : 10 ga.

• Capacity (stainless, ga.) : 13 ga.

• Strokes Per Minute : 1,600 SPM

• AMPS : 6.2

• Overall Length : 8-3/8"

• Net Weight : 7.4 lbs.

• Cutting Radius : 2"

• 360° rotating head : No

• Power Type : Corded
