SO-20" SPINDLE SHAPER

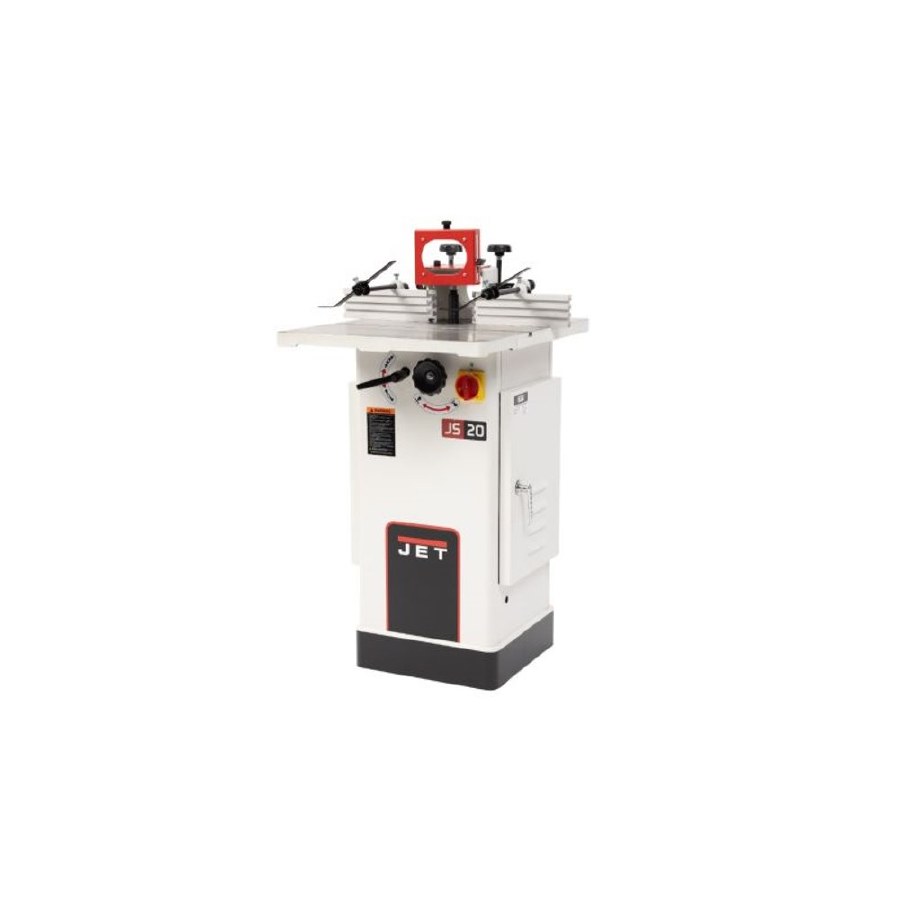

JWS-20CS SPINDLE SHAPER, 1-1/2HP, 1PH 115/230V

If you're looking for a space-saving shaper for your shop, the JET JWS-20CS Shaper is what you need. This compact powerhouse features an 8,000 and 10,000 RPM reversing 1-1/2HP motor. The sleek 18"(L) X 20"(W) precision-ground cast iron table provides a durable work area for various projects. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independent left and right fences feature micro-adjustment, and a built in 4” dust port. When add the new JET JWS-20CS Shaper in your shop today, you'll know why JET products are "Built Better to Build Better".

FEATURES:
Powerful 1-1/2HP motor delivers dependable power, even on heavy jobs
Independent left and right fences feature micro-adjustment and have zero-clearance capability
Fully enclosed, heavy-duty steel stand has a removable cover for easy motor access
Forward/reverse switch for left and right hand operation
Extra-large handwheel is conveniently located for fast, easy, and accurate spindle height adjustments
1/2" and 3/4" interchangeable spindles and router bit collets for use with shaper cutter and router bits
Two adjustable work hold-downs to secure your work while shaping
Two reversible spindle speeds lets you select the best speed and torque for different cutter diameters
SPECIFICATIONS:
Stock Number JT9-724020
Dust Collection Minimum CFM Required (CFM) 300
Dust Port Outside Diameter (In.) 4
Electrical Controls Manual
Motor Amps 15/7.5
Motor Power (HP) 1-1/2
Motor Voltage (V.) 115/230
Prewired Voltage (V.) 115
Reversible Yes
Style (Type) Floor standing Model
Table Height from Floor (In.) 33-1/2
