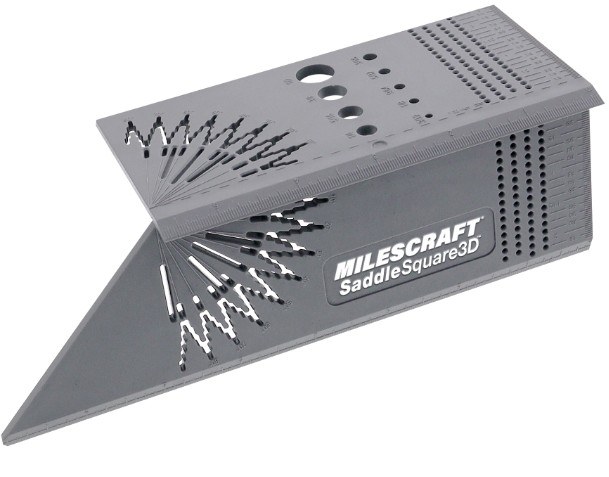

SaddleSquare3D™

The Milescraft® SaddleSquare3D is a handy woodshop companion that fits in your pocket and makes transferring layout lines onto your work piece quick and easy. All you need is a .9mm mechanical pencil, and the SaddleSquare3D, and you are ready to go!

The multi-function tool is lightweight and compact making it easy to store in your shop apron and always at hand when new layout marking is required.

The SaddleSquare3D functions as two saddle squares in one. Transfer 90-degree marks from one face to another using one side of the tool. Flip it over, and it becomes a Miter Saddle transferring a 45 Degree line. The SaddleSquare3D Also has a patent pending angle finding feature that allows you to mark work pieces at any whole angle from 2 degrees to 83 degrees using exactly spaced guiding channels.

Also included are 4 different rules with 1/32” markings. Two horizontal, and two verticals. Aligned with these markings, are scribing guides that fit a .9mm mechanical pencil which eliminates manually marking your piece, and providing a physical guide to mark the exactly spaced line you need.

In case your drill bits have been through the ringer, there is also a handy drill bit sizing gauge built into one surface to quickly identify the size of drill bits laying around the shop that may have had sizing become unreadable.

The SaddleSquare3D™, from Milescraft® makes the perfect assistant when doing layout work around your workshop.

Mark Multiple Sides and Angles

SaddleSquare3D acts as a tradition 90 Degree Saddle Square and a 45 Degree Miter Saddle transfers marks on adjacent board faces
Accurate Scales

Four 1/32” spaced rulers for marking and finer measuring
Physical Scribing Guide

Scribe layout lines every 1/32” using a mechanical pencil and precise scribe holes
HIT THE MARK

Patent pending exact angle marking guide physically guides pencil to exact angle between 2 degrees and 83 degrees
FOR THOSE OLD BITS

Drill bit sizing gauge helps to identify size of common imperial drill bits that may have had sizing wear off
DON’T FORGET

For use with a .9mm mechanical pencil
