MOBILE DRILLING ATTACH,

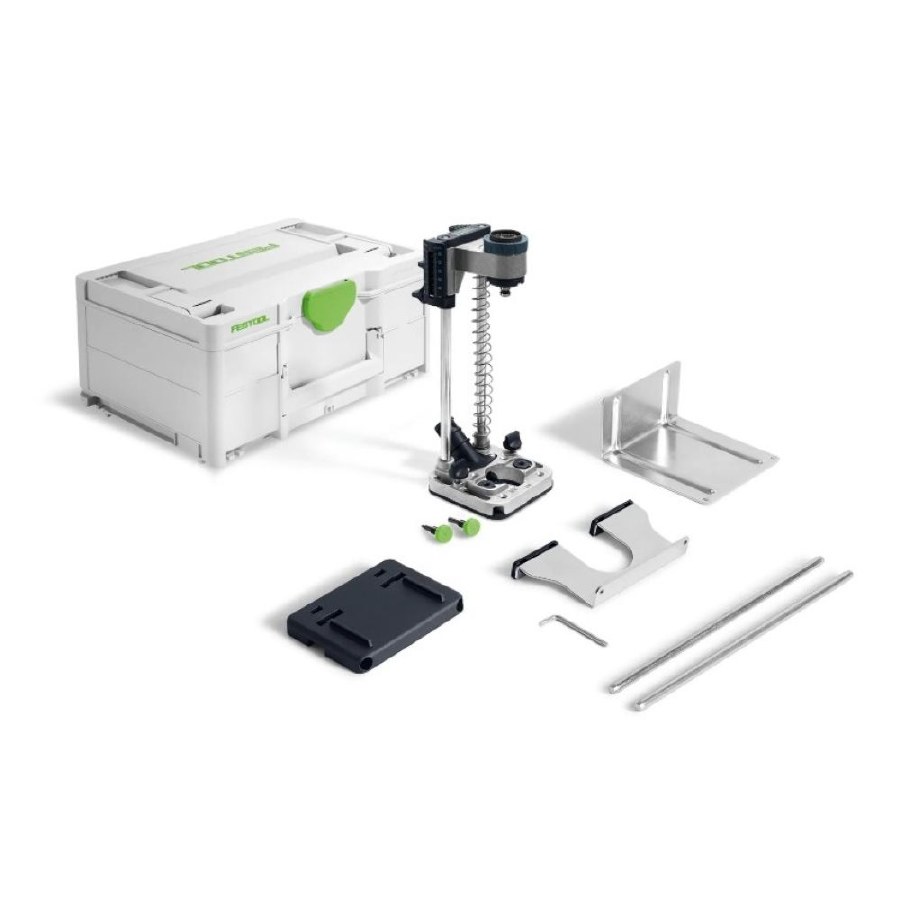

MOBILE DRILLING ATTACHMENT MB 40-SET
for CXS/TXS 12, CXS/TXS 18, TPC 18/4, TDC 18/4, C 18 and T 18 with FastFix support (not for CXS/TXS)

When precision is required.
Do you want holes drilled at right angles with pinpoint accuracy and repeat accuracy? The MB 40 mobile drilling attachment is made for exactly this: Solid and stable construction, with depth adjustment via a scale and a variety of stops and adapters.

Ready for use everywhere.
The mobile drilling attachment comes to the workpiece and not the other way round. It is handy and compact, so you can easily take it with you wherever you go.

Suitable for your application.
The FastFix attachment, which you can customise to your individual needs: It can be quickly converted for drilling holes in workpiece edges and, here as well, it guarantees you the precision that you need.

FastFix attachment
Enables you to fit Festool cordless drills and cordless percussion drills quickly, easily and entirely without tools.

Depth-controlled
For depth-limited holes up to 50 mm, such as series of holes or cupboard hinges, the exact plunge depth into the material can be set in mm or inches using the scale.

Hole series function
For holes in the 32 mm system with a 3 mm hole series pin and a 5 mm hole series pin. The pin stays in the same spot throughout the hole series project. No need to switch the pin.

Parallel side fence
For fast and precise drilling with repeat accuracy, parallel to an edge.

Stop for end face holes
Enables precise drilling in panel edges.

Guide rail adapter
For fast drilling in a line. The adapter can be attached to all Festool guide rails without tools.

Spring-loaded supports
Enable easy guidance when drilling. For special applications, you can convert the drilling attachment and remove the spring.

Variable use
Thanks to the holes in the base plate, you can fit the MB 40 on a workpiece or on individually built fixtures.

Scribe marks and other markings
Help when drilling series of holes, cupboard hinges and alignment on the scribe mark, to achieve drilled holes with pinpoint accuracy.

Dust extraction
For a clear view of the drilling point and a clean working environment, a mobile dust extractor from dust class M can be connected to the extractor connector.
