HARMONIC BALANCER INSTALLER

Installs Harmonic Balancers or Drive Pulleys that are Pressed on the Crankshaft.

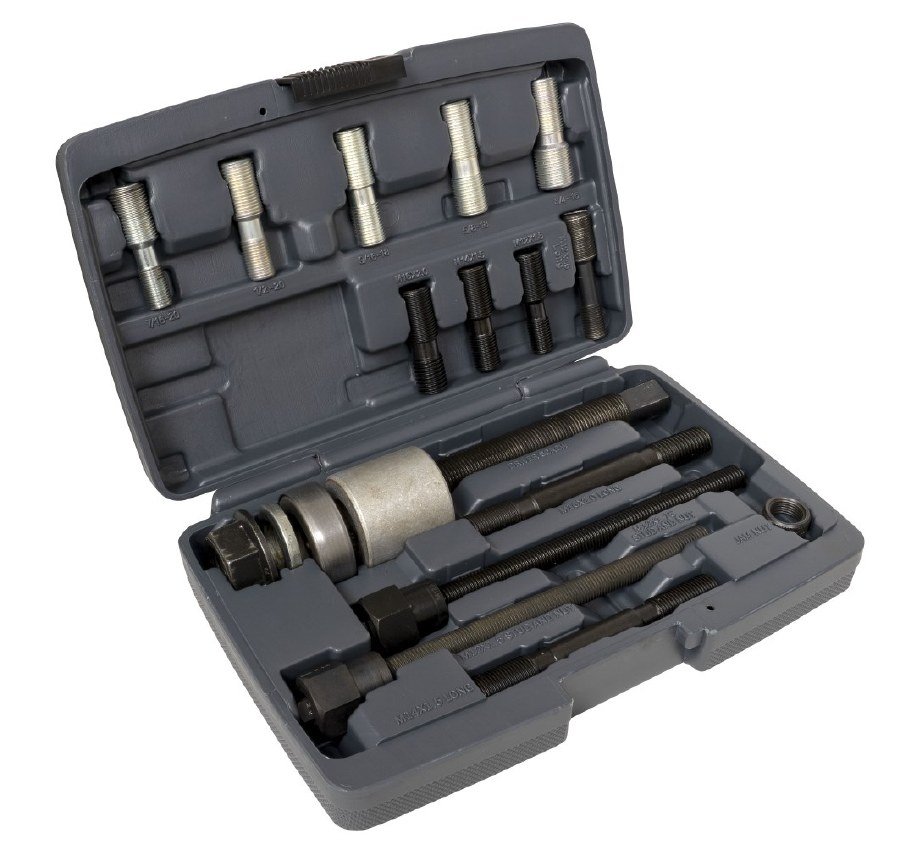

Set includes driving screw, thrust bearing and 13 threaded adapters necessary to work on a wide range of domestic and some import harmonic balancers. Five long adapters for
use on Dodge Hemi, generation III and IV GM motors, some Chrysler and some Ford including 3.5L and 4.0L. The 1.75" spacer allows the tool to work more effectively on deep
harmonic balancers.

SUPERSEDES #53760 Harmonic Balancer Installer Kit, 12 Adapters


Available Individually:

Part # Description
1 52210 Flanged Nut
2 52220 Thrust Bearing
3 52230 Driver
4 52240 Knurled Nut
5 52250 Spacer
6 52270 7/16-20 Adapter
7 52290 M12x1.5 Adapter
8 52300 1/2-20 Adapter
9 52320 M14x1.5 Adapter
10 52330 9/16-18 Adapter
11 52340 5/8-18 Adapter
12 52350 M16x2.0 Adapter
13 52360 3/4-16 Adapter
14 53470 Spacer
15 53480 M14x1.5 Adapter, Long
16 53490 M16x2.0 Adapter, Long
17 53740 Case for 53790
18 53770 M12x1.5 Adapter
19 53820 Long 12mmx1.5 Threaded Shaft
20 66720 M12x1.75 Nut
21 53830 M12x1.5 Nut
22 66860 M12x1.75 Stud
58960 Spacer
