CornerCut™

CornerCut™

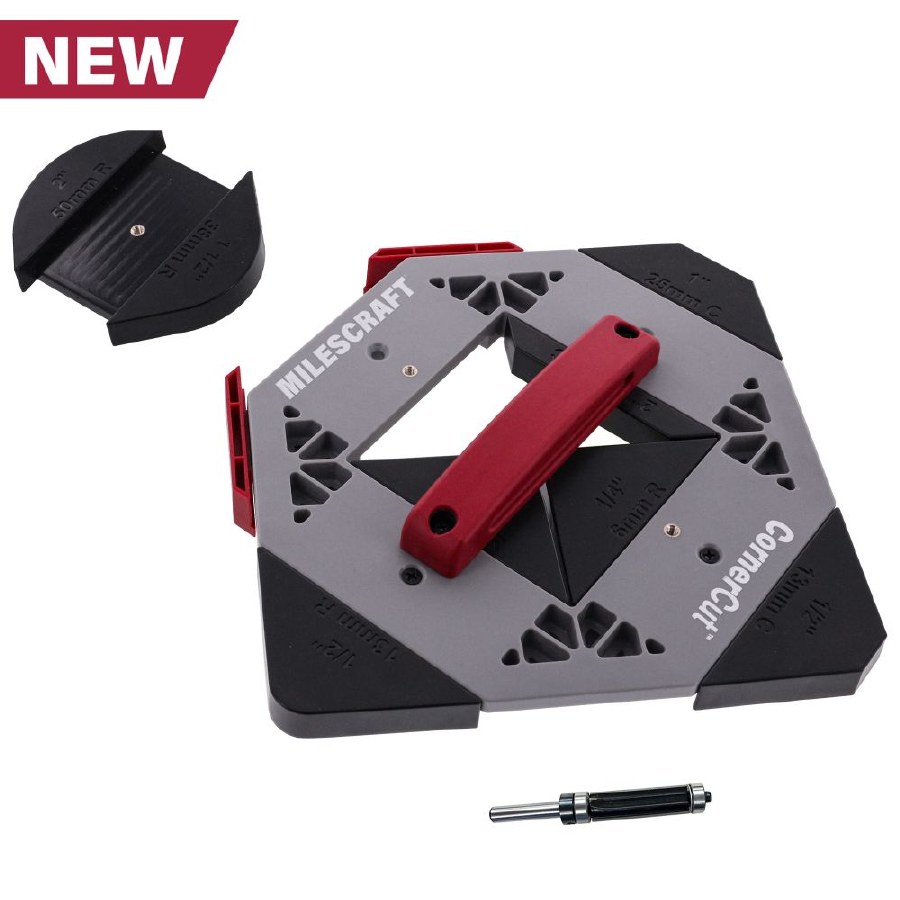

Corner Radius Router Jig. Handheld Router or Router Table. 8 Profiles. Double Bearing Router Bit Included.

Take the guess work out of creating rounded corners and 45-degree chamfers on woodworking projects with the CornerCut™, by Milescraft®. Save time sanding down profiles to size by using a router to cleanly and accurately round off corners.

The CornerCut™ includes 5 radius templates measuring 1/4″, 1/2″, 1”, 1-1/2”, and 2” (6mm, 13mm, 25mm, 38mm, & 50mm), as well as 3 corner chamfer templates for 1/2”, 1”, and 2” (13mm, 25mm, 50mm) distances. Each template stores directly on the jig, so nothing gets lost or misplaced. The space saving flip design allows for quick rotation of the templates to change the profile.

The CornerCut™ is perfect for use with any router setup. By removing the handle and clamping to work piece, Trim, Compact, and Full-size routers can be used on the flat-top surface utilizing the top bearing on a router bit. For use on a router table, reconnect the handle and follow the bottom bearing as you move the piece from right to left. The CornerCut™ includes a ½” x 1-1/4” Dual Bearing Flush Trim Router bit so it is ready for any situation right out of the box.

If your workpiece is a little narrower, the CornerCut™ can be adjusted for the smaller width. By moving the edge guide references closer for smaller boards, or further apart for larger boards, maximum contact and control can be maintained. The rubber padded base also helps grip the workpiece to prevent slippage during routing.

Don’t cut any corners! Create beautiful radiuses and straight chamfers on your woodworking project with the Milescraft® CornerCut™.

Universal Router
Use with any handheld router or router table
Templates
Includes 4 flip templates with 8 different patterns
Routing
Rout corner radiuses in 1/4″, 1/2″, 1”, 1-1/2”, and 2”. (6mm, 13mm, 25mm, 38mm, & 50mm)
Chamfers
Create 1/2”, 1”, and 2” (13mm, 25mm, 50mm) 45-degree Chamfers
Router Bit
Includes 1/2” x 1-1/4” Dual Bearing Flush Trim Router Bit with ¼” shank
Edge Guides
Edge guides are adjustable for narrower or wider boards
Grip
Rubber pads help grip workpiece securely
Handle
Large, removable handle helps provide extra control for router table work
