WATER COOLED SPINDLE SYSTEM

THIS KIT ONLY FITS HD5 & HD6 SERIES MACHINES – YOU MUST HAVE VECTRIC 10.5 OR HIGHER

NOW WITH A DIGITAL INTERFACE!

This spindle is ultra-quiet, made with long-life German-made precision bearings, and designed for harsh environment operations. Operates on standard 110V AC and will plug directly into any standard wall socket (requires 15-amp circuit).

Featuring auto start and stop and the ability to control motor speeds directly within the Vectric software Requires 10.5 or higher).

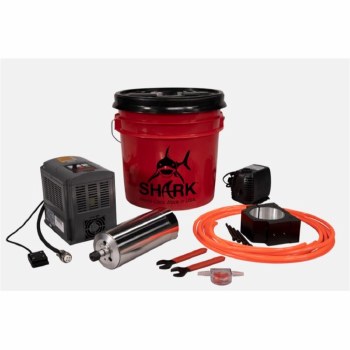

Kit includes everything needed to work on SHARK CNC HD5 & HD6 models.

Specifications:

2hp (1.5Kw) liquid-cooled brushless Spindle.
24,000 RPM max 110V 13-amp inverter with digital readout display
Aluminum Clamping kit for Spindle to CNC Shark HD5 & HD6 series ONLY
Pre-programmed VFD – ready to run
Er11 Collet system includes 1/4″ and 1/8″ shank collets
13mm & 17mm wrenches
Digital interface cable to allow full auto control
3-1/2 gallon coolant system with dust resistant screw-on lid and wire grommet
Coolant hoses and fittings with a Coolant flow meter to ensure water movement. Submersible 110V fluid pump for coolant.
1 Year Warranty
