S90-200-15 2T CHAIN HOIST 15' LIFT

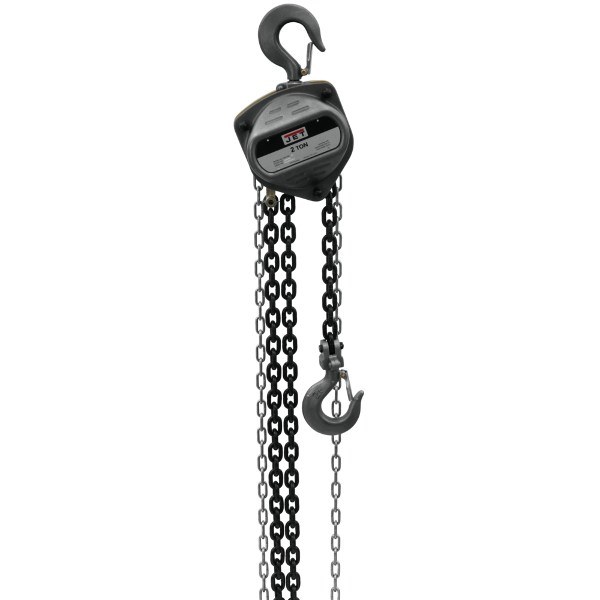

S90-200-15, 2-Ton Hand Chain Hoist With 15' Lift

JET® S90 Series hand chain hoists were designed with reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET® S90 is available in capacities from ½ ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET® S90 is the ideal contractor grade hoist.

Features:

• Safety





• Weston Style Dual Pawl Brake System- Double pawl design increases safety





• Alloy Steel Hooks- Industrial rated hooks rotate 360 degrees for easy rigging. Hooks slowly stretch to indicate an overload situation increasing jobsite safety





• Durability





• Needle Bearing Design- Promotes long hoist life with low wear reducing downtime





• Heat Treated Load Plates- Heat treated, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments





• Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability





• All Steel Construction- Impact resistant covers that provide durability and protection





• Compact Design- Smaller body and lightweight design for low headroom applications and use in confined areas





• Standards





• Industry- Complies with OSHA Regulations, ANSI / ASME B30.16 and HST-2 Standards





• Certification- Load tested to 125% of capacity with certificate

Specifications:

• Load Capacity (Tons): 2

• Lift (Ft.): 15

• Overload Protection: No

• Headroom (In.): 17-1/2

• Hand Chain Overhaul (Ft.) to Lift Load 1Ft.: 71

• Hand Chain Pull Force (LBF) to Move Load: 91

• Load Chain Dimensions (Mm.): 8 x 24

• Number of Falls: 1

• Weight (Lbs.): 60
