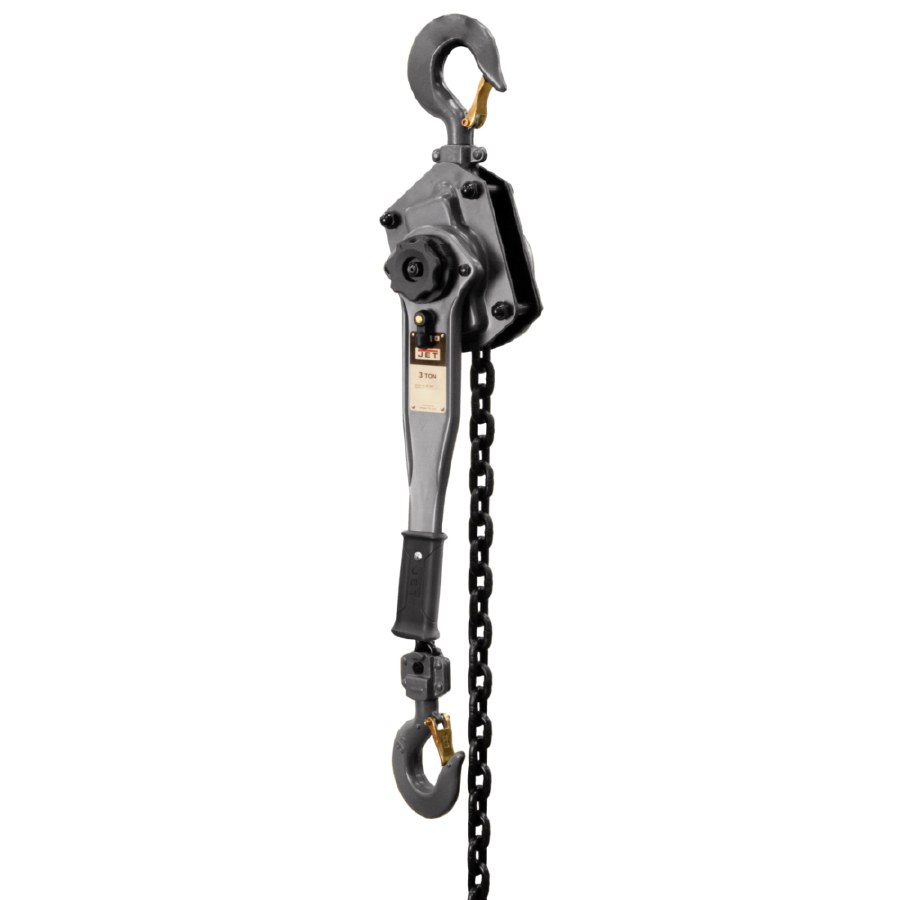

JLP-300A-10, 3 T LEVER HOIST 10'

JLP-A Series 3 Ton Lever Hoist, 10' Lift

Features:

• Safety




• NEW! Innovative brake wear indicator provides a visual indication when the friction disks are worn and need replacing




• NEW! JET’s improved easy free chain design is a two-step, no load, free chaining system. The system permits quicker hoist positioning and take up of slack chain, and is engineered not to free chain under load




• The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety




• Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation




• NEW! Redesigned ergonomic grip allows for greater operator control and increased comfort




• Durability




• Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations




• Optional Shipyard Hook are blunt tip hooks, designed for point loading and virtually eliminate stretched hooks, reducing downtime for maintenance and repair




• Grade 80 black oxide coated load chain for added durability




• Needle bearings support the load sheave to increase efficiency and promote smooth operation




• Impact resistant all steel construction for added durability and protection




• Standards




• This product complies with ANSI / ASME B30.21 and HST-3 Standards
  Load tested to 125% of capacity with certificate

Specifications:

• Load Capacity (Tons): 3

• Lift (Ft.): 10

• Overload Protection: No

• Ship Yard Hooks: No

• Headroom (In.): 18-8/9

• Handle Length (In.): 16-1/7

• Lever Pull Force (LBF): 71

• Lift per Turn (In.): 2/3

• Number of Falls: 1

• Load Chain Dimensions (Mm.): 10 x 30

• Hook Throat Opening (In.): 2-1/2

• Overall Width (In.): 7-7/8

• Weight (Lbs.): 50
