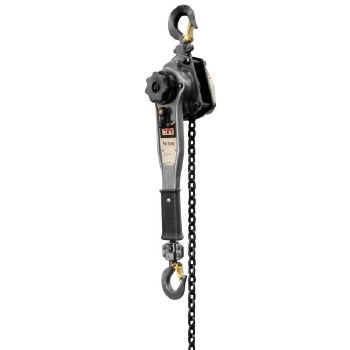

JLP-075A-5 3/4T LEVER HOIST 5'LIFT

JLP-A Series 3/4 Ton Lever Hoist, 5' Lift

JET® JLP-A Series lever hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A lever hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade lever hoist.

Features:

• Safety





• Patented brake wear indicator provides visual indication when to replace worn friction disks





• Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security





• Industrial rated alloy steel hooks rotate 360 degrees for easy rigging





• Hooks slowly stretch to indicate an overload situation increasing jobsite safety
  Durability





• Cast steel safety latches are secured with Allen screws and lock nuts





• Grade 80 black oxide coated for added durability





• Needle bearing design increases efficiency and promotes smooth operation





• Impact resistant all steel construction for added durability and protection





• Standards





• This product complies with ANSI / ASME B30.21 and HST-3 standards





• Load tested to 125% of capacity with certificate

Specifications:

• Load Capacity (Tons): 3/4

• Lift (Ft.): 5

• Overload Protection: No

• Ship Yard Hooks: No

• Headroom (In.): 12-4/5

• Handle Length (In.): 11

• Lever Pull Force (LBF): 31

• Lift per Turn (In.): 4/5

• Number of Falls: 1

• Load Chain Dimensions (Mm.): 6 x 18

• Hook Throat Opening (In.): 1-1/2

• Overall Width (In.): 5-5/6

• Weight (Lbs.): 14
