DIG CLAMP METER AC AUTO-RANGIN

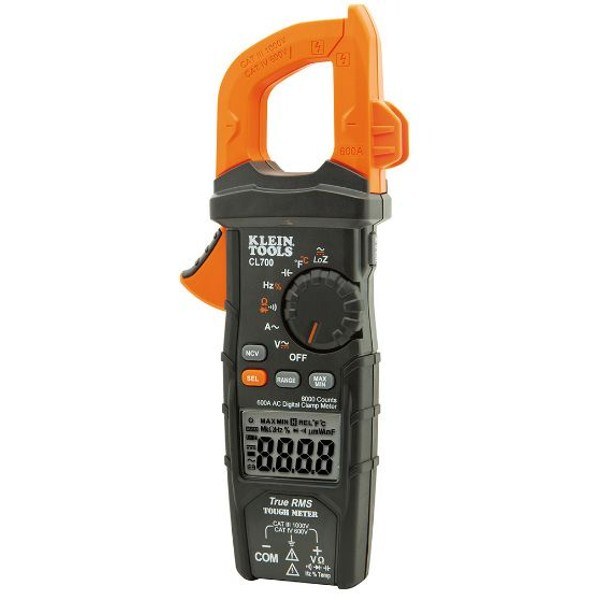

Digital Clamp Meter AC Auto-Ranging LoZ

Includes:

• carrying pouch

• test leads

• thermocouple with adapter

• batteries

Features:

• Automatically ranging true mean squared (TRMS) technology for increased accuracy




• Clamp measures AC current and thermocouple probe measure temperature




• Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes




• Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages




• CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating




• Built to withstand a 6.6 ft. (2 m) drop




• Low battery indicator and easily accessible battery compartment




• Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations




• Operating Temperature: 32°F to 104°F (0°C to 40°C)




• Operating altitude to 6,562 ft (2,000 m)

Specifications:

• Safety Rating: CAT IV 600V

• Batteries: 2 x AAA

• Jaw Size: 1-3/8'' (34.9 mm)

• Height: 9-3/32'' (231.0 mm)

• Width: 3-13/16'' (96.8 mm)

• Weight: 0.74 lbs. (0.33 kg)

• Application: Measures AC Current

• Dimensions: 9-3/32'' x 3-13/16'' x 1-17/32'' (231.0 x 96.8 x 38.9 mm)

• Drop Protection: 6.6 ft. (2 m)

• Ingress Protection: IP40Special
• Features: Features Low Battery Indicator

• Standard: CE Certified
