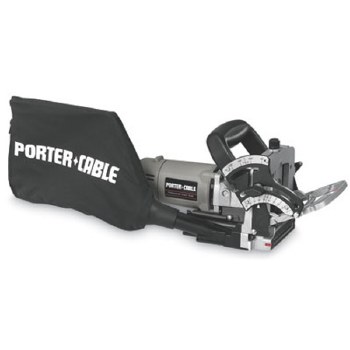

DELUXE PLATE JOINER KIT

7.0 Amp, 120 V, AC only, 10,000 rpm


1" O.D. dust port accepts standard bag or can be connected to a vacuum


Fence tilts from 0° to 135° with positive adjustable stop at 90°


Precise micro height-adjustment knob


Lock-on trigger


Includes both 2" and 4" diameter blades for standard and face-frame biscuits


Height scale accurate at any angle


Seven-position rotating depth stop for FF, #0, #10, #20, Simplex, Duplex, and Max (#6) biscuits


Spindle lock feature allows for single wrench bit changes


Bale handle attached to fence, not motor, for greater stability and added control during cuts


Plate joiner, 2" blade #5559, 4" blade #5558, centering plate #888776, dust bag #883175, chip deflector #886490, Allen wrench #891869, carrying case, and operating manual



Power: 120 VAC, 25-60 HZ


Amps: 7.0 Amps


Speed: 10,000 rpm


Blade Type: 6-Tooth (CT) & 4-Tooth (CT)


Blade Size: 2" & 4" "


Height: 7 "


Net Weight: 7 1/2 lbs


Shipping Weight: 13-1/2 lbs


Biscuits Accepted: FF, #0, #10, #20, Simplex, Duplex, and #6
