CRB7 TRIMJIG

THE CRB7 – 7 FUNCTIONS - 1 ROUTER JIG
M-POWER Tools Combination Router Base is truly unique amongst router jigs: It's 7 core functions takes the average router to a different level of performance. Confirming it as the most versatile power tool money can buy. With no additional accessories needed the CRB7 functions are: Adjustable Dado-ing/trenching, Adjustable Mortising, Anti Tilt Support, Precision Small Circle Compass, Off Set Edge Routing and Faux Panel Dado Copier. The CRB increases overall routing stability, improves accuracy and quality of finish of every routing pass. The CRB7 fits the majority of woodworking routers and unlike practically every other jig – It is quick change, no screws or drivers required, it literally slides on and off the router reducing set up time to almost nothing.
Tool Functions:
Adjustable Dado-ing or Trenching with a clamp guide - Set the
clamp guide once and adjust the position of the router via the CRB7's
Micro Adjuster. CRB increases router to clamp guide surface contact
area and reduces clamp guide set up time – eliminating it in some
cases.
Adjustable Mortising – a unique feature that allows "Centred and
Off Centred" mortises plus decide on and precisely control the actual
width of the mortise .
Anti Tilt Support – Another first, variable height triangulated
stabilization – Usually most of the router base remains unsupported
when edge routing - CRB Anti tilt leg eliminates router tilt especially
important when routing work-pieces with a high aspect ratio.
Compass - Route precision circles and holes that are actually smaller
than the base of the router - CRB can route circles and wheels from:
¾” > 8.¾” radius (19 > 225mm) that’s diameters ranging 1.½” > 17.½”
to (38 > 450mm) with a ¼” 6mm straight router cutter.
Off Set Base Plate - Increases overall router stability – reducing
errors when edge moulding by more than doubling the surface contact
area between router and workpiece. CRB also moves the pivot hand
guiding the router toward the centre of the panel smoothing out the
router pass action, reducing the chance of burn marks.
Adjustable false panel rebate copier - The CRB provides a simple
and exceptionally quick way of accurately repeating a moulded dado
for production batch quality faux or false panelling.

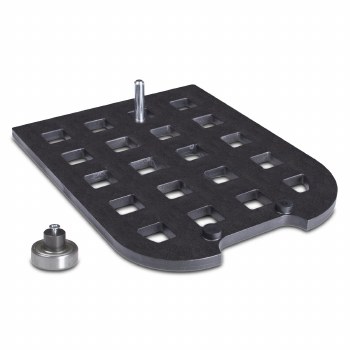

Flush Trim Lipping Kit - With virtually no set up time - quick fit the
Trim Jig riser pad to accurately machine trim hard wood and iron on
lipping flush with the core board in seconds. (requires accessory kit)
Tool Features:
One Time Set Up – Set up the CRB7 to fit your favourite router just
once with a set of 4 x injection moulded shims and 4 sets of screws -
job done
Quick Change – Unlike most router jigs, CRB can be fitted/removed in
less than 10 seconds.. with no fiddly screws or cantering jigs required.
Micro Adjuster – High precision router cutter position can be attained
and repeated using the knurled and indexed micro adjuster.
2" Bakelite Ball Handle – Ergonomic design, comfortable to the
touch, allowing for easy hours of consecutive use.
Indexed Rule – The self adhesive Imperial/Metric rule is another
feature to ensure fast easy readings of router cutter position.
2 Section Anti Tilt Leg - Supports and stabilizes the router, when
routing materials varying in thickness from 3/8” > 3.1/4”
- 10mm > 82mm. The 2 leg sections accommodate combinations of
router position and workpiece thickness.
Magnetic Pivot Pin Storage – A no loose home for this essential
component, safe and easily accessible when ever needed.
Professional Grade Build – Made in England CRB is manufactured to
the highest standards including a hard anodized machined solid
aluminum bridge. Laser cut 5mm thick acrylic baseplate and precision
turned steel and brass components.
2 Year Guarantee – Our extended guarantee is testimony to the build
quality of the CRB and ensures our customers can buy in confidence
