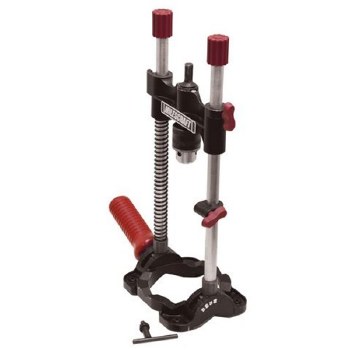

ACCU DRILL MATE

Accu Drill Mate

Description:

A Portable Drill Stand For Use Almost Anywhere



Drill straight holes all the time! With the AccuDrillMate you can drill straight or angled holes, drill on the edge of a board or even round stock. Compatible with 3/8” and 1/2” power drills and works with most 3/8” drill accessories. This all metal construction AccuDrillMate provides the precision of a drill press with the ease of a hand drill.



Metal head with fixed depth stop and easy-glide bearings:





• Fast attachment of drill


• Smooth operation with high precision


• Fixed positioning of drill height



Metal base with scale, V-grooves, mounting holes and rubber feet:





• Easy to read angles


• Centering of round materials


• Self-centering bottom


• Permanent mounting with screws possible


• Non-slip base when used with feet



Solid steel rods with angle adjustment knobs:





• No deflection


• Easy adjustment of angle settings



Metal angle adjusters:





• Interlock with metal base for secure angle drilling


Adjustable depth stop:





• Precise depth for repetitive drilling


Spring:





• Controlled drilling


• Prevents cutting tool from hitting work piece


Auxiliary handle:





• Can be mounted in fixed position on the base or on the metal guide head to support drilling motion

Specification:

• Material: Metal and plastic


• Chuck: 3/8" Keyed


• Drill Bit Clearance: Always: Maximum 8.88"


• Drill Head Clearance with Spring and Depth Stop: Max Travel: 6.23" Minimum Drill Bit Length: 2.65"


• Drill Head Clearance without Spring and Depth Stop: Max Travel: 8.15"
  Minimum Drill Bit Clearance: 0.73"


• Compatible with: 3/8” and 1/2” power drills NOT FOR USE WITH HAMMER OR IMPACT TOOLS
