7¼" MAGNESIUM HYPOID SAW

7-1/4" Magnesium Hypoid Saw

Includes:

• (1) 7-1/4" 24T Ultra-Coated C.T. Saw Blade (A-94530-A)

• (1) Wrench (783204-6)

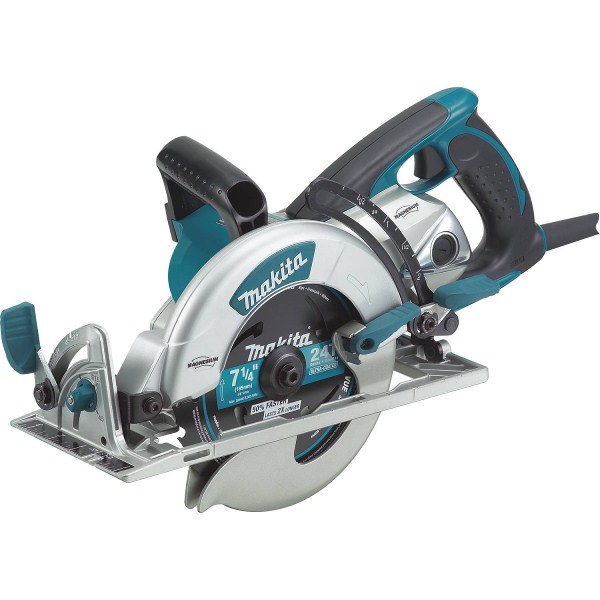

The Makita 7-1/4” Magnesium Hypoid Saw features highly durable magnesium components and a powerful 15 AMP Makita-built industrial motor with a hypoid gearing system for maximum power output. The 5377MG seamlessly balances weight, power, durability, and ease of use for optimum cutting performance.

Makita-Built Motor Engineered for Versatile Power

The 5377MG features a Makita-built 15 AMP industrial motor that delivers 4,500 RPM, combined with well-balanced magnesium components for a lighter weight saw that delivers true power the professional user demands. Users will benefit from the precision-machined hypoid gears, which deliver more constant power than worm drive gears. Hypoid gears have greater surface contact so more power is transferred over a wider surface, providing increased power and durability. In addition, hypoid gears are in an oil bath for consistent oil coverage. The saw has a large cutting capacity (2-3/8” at 90°) with a maximum bevel capacity of 51.5° and positive stops at 22.5°, 45° and 51.5° for quick back-and-forth changes.

Ergonomic and Ease-of-Use Features

Magnesium components allowed Makita to engineer a saw with less weight (13.2 lbs.) that is well-balanced and jobsite tough. Additional design details include greater clearance between the rear handle and the blade case to provide a better grip for larger hands or for users with gloves, as well as a wider space between the blade and housing for a clearer view of the blade and measurement scale. Makita also engineered ergonomics and ease-of-use into the saw, including clearly visible depth and bevel markings and ergonomic hand grips to improve overall control while minimizing operator fatigue. The large rubberized levers provide quick, one-handed adjustments for more efficient work.

Includes Ultra-Coated Framing Blade

The 5377MG includes a Makita 7-1/4” Premium Ultra-Coated Framing Blade with Advance Tooth Design. The "M" shaped tooth design features a two-pointed tip and two 10 degree bevel face to maximize cutting performance for a faster, cleaner and longer lasting cut. The carbide tips are specifically set to withstand the harshest conditions such as plowing through nail-embedded wood. The blade is also ultra-coated to reduce heat and pitch build-up for faster, smoother cutting, with special Makita heat vents strategically set to dissipate heat and increase performance. The 5377MG also include a blade wrench attached to the saw for fast and convenient blade changing.

Engineered for a Range of Applications

The 5377MG is built for framing walls, floors and roofs using a range of dimensional lumber and dense engineered lumber, including LVL, PSL and I-Joists, headers, and microlams; as well as ripping panels such as plywood, OSB, particle board, and dense structural panels. Other applications include plunge and bevel cutting, as well as masonry and metal cutting.

Specifications:

• Blade Diameter: 7-1/4"
  Arbor: 5/8"
  Max. Cutting Capacity (at 90°): 2-3/8"
  Max. Cutting Capacity (at 45°): 1-3/4"
  Max. Cutting Capacity (at 50°): 1-9/16"
  No Load Speed: 4,500 RPM
  Watts Out: 2,300
  AMPS: 15
  Overall Length: 17-3/4"
  Net Weight: 13.2 lbs.
  Power Type: Corded
