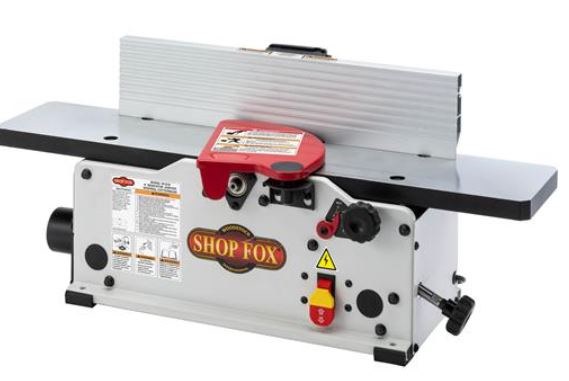

6" Benchtop Jointer Spiral Ctr

The W1876 6" Benchtop Jointer will square up edges with the spiral-type cutterhead with HSS indexable inserts.

A spiral-type cutterhead allows smoother finishes, quieter operation, and less maintenance compared with straight-knife cutterheads.

The 12 high-speed steel (HSS) inserts sit square to the axis of the cutterhead, with the cutting edges perpendicular to the workpiece. HSS has been heat treated for hardness and wear resistance, which keeps a sharp edge longer than other carbon steels.

Each two-sided insert can each be rotated once to expose a new sharp edge.

The knob-adjustable infeed table with lock provides ultra-precision cutting depth adjustments.

The W1876 also features an inch and metric cut depth indicator and an east-to-adjust extruded-aluminum fence.

Motor: 1-1/2 HP
Table size: 30 in. x 6-1/4 in.
Table type: Cast Aluminum
Table adjustment: Knob
Cutterhead type: Spiral
Cutterhead diameter: 2 in.
Max depth of cut: 1/8 in.
Fence size: 4-1/4 in. x 19-3/4 in.
Shipping weight: 44 lbs.

FEATURES:
Spiral-type cutterhead with 12 indexable HSS inserts
2-1/2" dust port
Cast aluminum infeed and outfeed tables
Infeed table height adjustment lock
INCLUDES:
Two safety push blocks
Torx T-25 T-handle driver
Hex wrenches 2.5, 4mm
