6½" PLUNGE CIRC SAW W/55" RAIL

6-1/2" Plunge Circular Saw Kit, with Stackable Tool case and 55" Guide Rail

Includes:

• (1) 6-1/2" Plunge Circular Saw (SP6000J)

• (1) 6-1/2" 48T Carbide-Tipped Saw Blade (B-07353)

• (1) Hex Wrench (783203-8)

• (1) 55" Guide Rail (194368-5)

• (1) Interlocking Tool Case (00000)

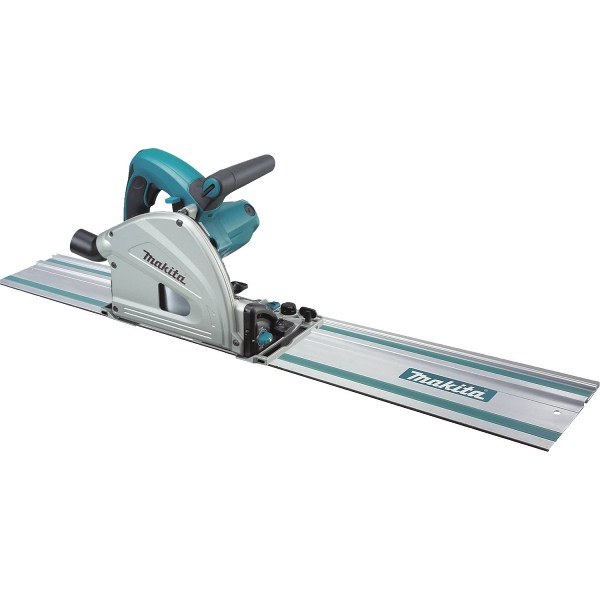

The Makita 6-1/2” Plunge Cut Circular Saw and 55” Guide Rail (model SP6000J1) work together to produce accurate cuts with minimal tear-out. The saw combines a powerful 12 AMP motor and a large cutting capacity with magnesium components for less weight and electronic speed control to maintain constant speed under load for smooth cutting and a splinter-free mirror finish. The SP6000J1 is a more portable option to a table saw for select applications, and it is ideal for use on the jobsite or in a workshop.

Precision Settings and Features for Quality Cuts

The SP6000J1 saw has a bevel capability of -1° to 48° with positive stops at 22.5° and 45°. The saw delivers precise cutting, as the position of the blade enters the material on the same cutting line whether cutting straight or bevel. In addition, the saw has close-to-wall cutting (11/16-inch) for expanded cutting applications. The built-in depth stop allows a preliminary cut of 1/16-inch to be performed before the entire material is cut through for clean and splinter-free cutting.

12 AMP Direct-Drive Power for Smooth Cutting

The SP6000J1 has a powerful 12 AMP motor with soft start for smooth start-ups, and Electronic Speed Control to maintain a constant speed under load for smooth cutting. The variable speed dial control (2,000 – 5,200 RPM) allows the user to set the speed for optimum performance in a variety of materials. The built-in torque limiter helps prevent motor burnout, with an electric brake for added productivity.

Precision Cuts and Ease of Use

The saw includes a range of convenient features, including a large top handle, an electric brake for more productivity, as well as a lock-lever that attaches the saw to the rail system so the saw stays on the anodized aluminum rail when positioned for a bevel cut. The smooth and convenient plunge release lever is designed for operator comfort, and the depth adjustment with large scale is easy to set.

Best in Class for a Range of Applications

The SP6000J1 is engineered for cutting sheet material, finish work, trim work, and remodeling. It is ideal for a broad range of trades, including cabinet installers, cabinet manufacturers, finish carpenters, stair installers, flooring installers, woodworkers, and general contractors seeking a best-in-class 6-1/2” Plunge Circular Saw.

Specifications:

• Blade Diameter : 6-1/2"

• Arbor (mm) : 20 mm

• Max. Cutting Capacity (at 90°) : 2-3/16"

• Max. Cutting Capacity (at 45°) : 1-9/16"

• No Load Speed (variable speed) : 2,000 - 5,200 RPM

• Watts Out : 1,800

• AMPS : 12

• Overall Length : 13-3/8"

• Net Weight : 16.5 lbs.

• Power Type : Corded
