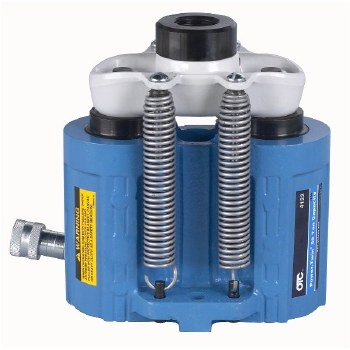

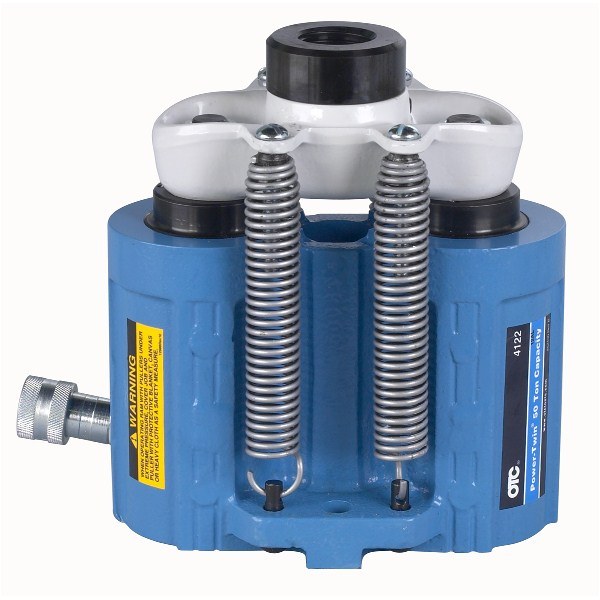

50 TON POWER TWIN CYL RAM

50-TON CENTER-HOLE, POWER TWIN® RAM

Features:

• Operating pressure up to 10,000 PSI; use this ram on Grip-O-Matic® pullers, Push-Pullers, and shop presses.





• 3" Stroke





• Single-acting hydraulic ram. Complete with No. 22274 threaded ram head insert, ram attaching screws, and No. 9796 ram half coupler.





• Center-hole ram is ideal for jobs that require a great deal of force and a relatively short stroke. Compared to the force it develops, each center-hole Power Twin ram is lightweight, compact, and easy to handle, permitting its use in confined quarters. Center-hole feature permits extending jacking screws, cables, puller screws, etc., straight through the ram.





• Quick change inserts for added job versatility, the Power Twin ram also feature a basic head which allows the operator to change from a tapped hole to a plain hole by merely changing the head insert (held in place by a socket-head set screw). In certain applications, the use of a plain insert is desired, since it permits using a speed nut for necessary readjustment after the ram has been extended, rather than turning the screw with a speed crank.
