5 SPINDLE PNEUMATIC

Special order item - please call our store.

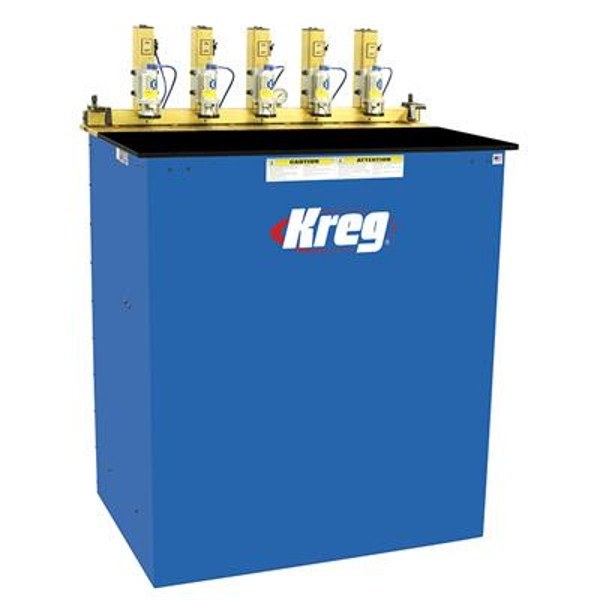

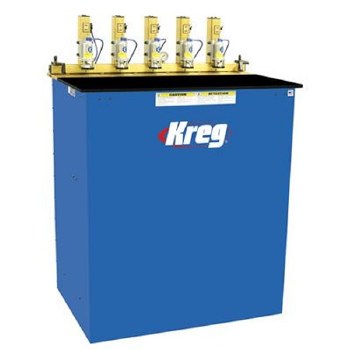

Panel-Boring Pocket Hole-Machine

Includes:

• (1) Panel-Boring Pocket-Hole Machine

• Complete Owner's Manual

Features:

• Five individually-actuated motors




• Five clamping cylinders




• Five durable drill spindles




• Entirely pneumatic design




• Hardened-steel drill guides to maximize drill bit life




• One-touch, foot pedal operation




• Swing Stops for optimized material positioning




• Dust collection chutes for efficient chip removal




• Pre-filter and automatic lubricator

Specifications:

• Motor: (5) pneumatic 3/4-HP motors

• Drill Bits: DKDB Drill Bit, 3/8" shank diameter, 3/16" pilot, 1/2"-long

• CFM Rating: 20 CFM at 50% duty cycle
  (120 PSI/minute)

• Cycle Time: 2 seconds

• Material Clamping Capacity : 13/4"

• Hole-Centering Capability: 1/2"-thick to 3/4"-thick material

• Weight: 350 lbs.

• Dimensions: 50"H x 36"W x 24"D
  40" table height

• On-Center Spindle Spacings: 6"

• Warranty: 5 Years
