30" SHEAR, BRAKE, ROLL 20 GA.

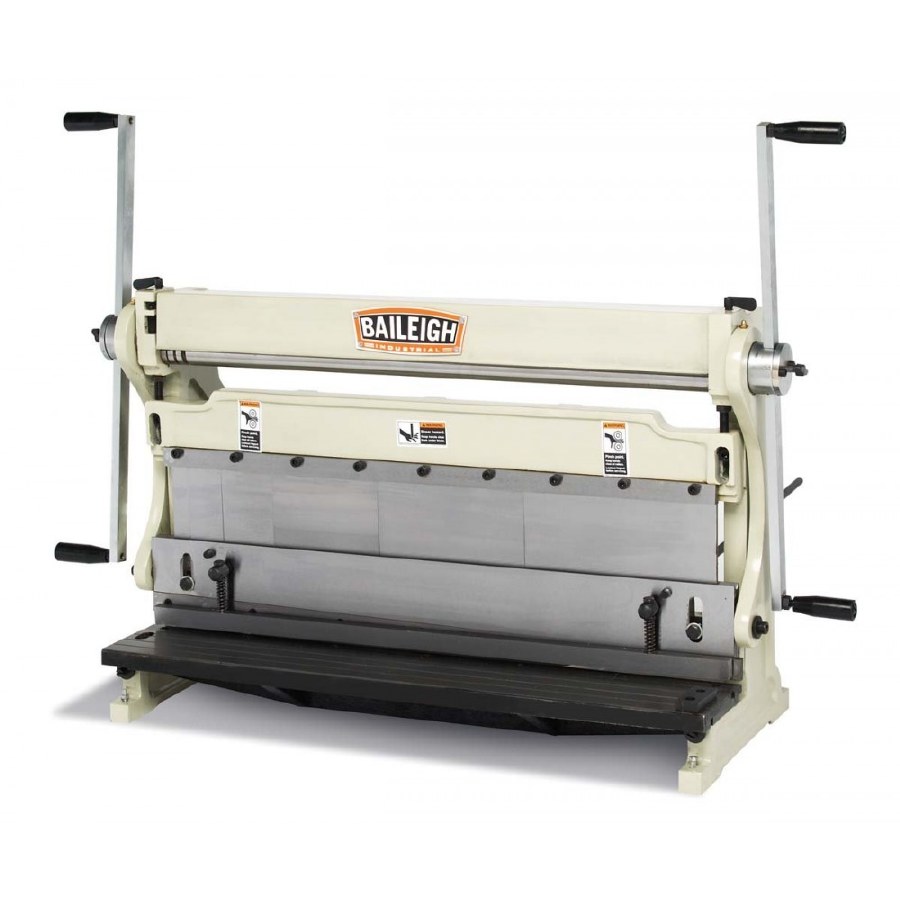

SBR-3020; 3 in 1 Combination Shear Brake and Roll. 30" Bed Width, 20 Gauge Mild Steel Capacity

This 3-in-1 combination machine saves space, great choice for small shops with low production runs and one-off projects
Thick steel construction gives the machine structural strength and maintains accuracy
Recommended for hobbyists, maintenance, and R & D shops
Slip roll on top, press brake in the middle, shear on the bottom
30" | 762 mm Working width for manual shear, press brake, and roll
Maximum thickness capacity of 20 gauge | .0359 In. | .911 mm mild steel and 16 gauge | .05082 In. | 1.291 mm aluminum for all functions
Forms rolls down to 1.54" | 39 mm in diameter
Slip roll portion has 3 wire grooves
Vertical press brake portion bends up to 90° for perfect corners
Adjust the camber of the tooling to keep pressure in the middle for a consistent bend across the full width
Press brake portion includes a V die set with corresponding punch die on top to make a 90° bend
Movable fingers on the top beam, ranging from 1" to 10-1/8", can make many box sizes
On the shear portion with a spring loaded hold-down helps reduce burr on the cut and prevent waste
Hardened and reversible blades stay sharp for longer
Turn the handles 360° to get one full cycle from the slip roll, press brake, or shear
Large handles with grips on both sides allow 2 operators to combine the force and make the machine easier to use
Manual back gauge makes repeatable parts without difficulty

Shearing Length (In. | mm) 30 | 762
Shearing Capacity:
Mild Steel (Gauge | In. | mm)
Aluminum (Gauge | In. | mm)
20 | .0359 | .911
16 | .05082 | 1.291
Bending Length (In. | mm) 30 | 762
Bending Capacity:
Mild Steel (Gauge | In. | mm)
Aluminum (Gauge | In. | mm)
20 | .0359 | .911
16 | .05082 | 1.291
Rolling Length (In. | mm) 30 | 762
Rolling Capacity:
Mild Steel (Gauge | In. | mm)
Aluminum (Gauge | In. | mm)
20 | .0359 | .911
16 | .05082 | 1.291
Maximum Bend Angle 90°
Minimum Rolling Diameter (In. | mm) 1.54 | 39
Number and Width of Fingers (No./In.) (1) 1 | 2-1/8 | 3-1/8 | 6 | 8 | 10-1/8
Finger Thickness (In. | mm) .25 | 6.35
Power Requirement Manual
Shipping Dimensions (L x W x H/In. | mm) 38 x 18 x 27 | 965 x 457 x 686
Shipping Weight (Lbs. | Kgs.) 363 | 165
Design and specifications are subject to change without notice.
