2.3HP ELEC FIXED BASE ROUTER

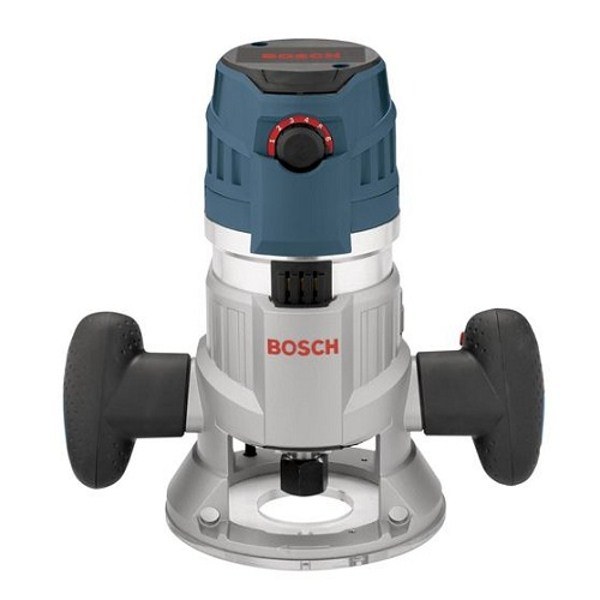

2.3 HP VS Fixed-Base Router

Includes:

Fixed Base (MRF01)

1/4" Self-Releasing Collet Chuck -- 2 610 906 283

1/2" Self-Releasing Collet Chuck -- 2 610 906 284

16mm Shaft Wrench -- 2 610 991 388

24mm Collet Nut Wrench-- 2 610 992 417

T-Handle Hex Height Adjustment Wrench -- 2610923193

Pack of 3 M4 Screws for table mounting - 2610005966

10,000-25, 000 RPM; 2.3 HP (Max tool)

Trigger control system - trigger power switch located in handle for enhanced control

Versatile fixed-base depth adjustment - features 1-5/8 In. continuous microfine adjustment range & wrench for adjustments through top of optional router table

Always-on LED lighting - for enhanced visibility in bit area

Precision centering design – makes it easy to keep bit on outline when using jigs, templets, dovetail fixtures and similar guidance devices

Two-stage quick clamp system - for fast tool-free conversion

Soft-start — reduces start-up torque

Variable speed dial — for matching speed to workpiece and task

Constant Response™ circuitry — maintains constant speed under load

Contoured soft grip handles — for enhanced control and comfort

Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern

Cord swivel - for added mobility

Amperage: 15

Base Diameter: 6" Fixed

Base Opening: 3-3/4"

Case Type: No Case Included

Collet Capacity: 1/2" and 1/4"

Cord Length: 10 ft

FixedBase Depth Range: 1-5/8"

Max. Motor HP: 2.3

No Load RPM: 10,000-25,000

Rating: 120V AC

Subbase Opening: 2"

Voltage: 120V

Warranty: Limited 1-Year Warranty

Weight: 9.3 lb
