155º ZERO PROTRUSION HINGE

Blum Clip Top 155° Zero Protrusion Hinges, Nickel, Frameless, Full Overlay

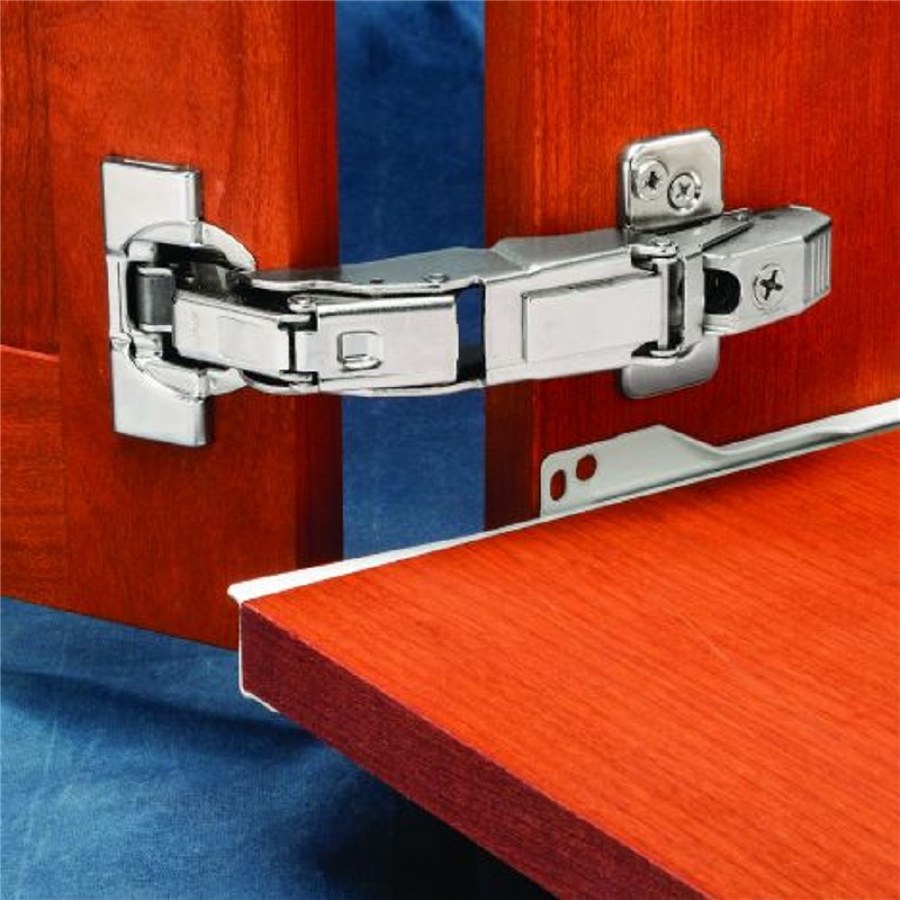

Once opened, these hinges throw the door edge completely clear of the cabinet opening so it won't obstruct the path of your pull-out shelves. The snap-close mechanism pulls the door firmly closed at the end of its travel, meaning no catch is required. The hinges are compatible with doors up to 15/16'' (24mm) thick. For fast precise installation, use our optional JIG IT® Hinge Plate Template A (#50375, sold separately) and the 5mm Tab Hinge Cup Drilling Jig (#58488, sold separately).

Features:

Full clearance for pullout shelves
Snap-close feature means no need for catches
3-way adjustability for consistent reveals and perfect alignment
Clip-on mounting and demounting—remove and reinstall the doors in seconds without tools
