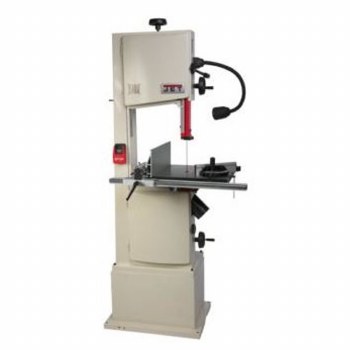

14" SFX BANDSAW, JWBS-14SFX

The newest addition to the JET Bandsaw lineup, the JET 14” SFX Steel Frame Bandsaw redefines the line between functionality and affordability. The large, cast iron table features 360 sq. in. of work surface for greater work piece support when making deep cuts. The machined aluminum fence system features easily visible measurements for the most accurate cutting. This saw is equipped with JET’s easily adjustable blade guide system, makes adjustments quick and simple. The JET 14” Bandsaw also features over 13 inches of resaw capacity, and dual 4 inch dust ports for maximum dust collection efficiency. Heavy duty tubular steel welded construction, robust stamped steel doors with welded steel pin hinges, and heavy duty base, allows for stability and durability when sawing large work pieces. The JET 14” SFX Bandsaw provides the woodworker all the premium features of a higher end saw with superior performance to complete any project.

Deeper table with a massive 360 sq. in. of cast iron work surface for greater work piece support

Over 13” Resaw capacity for cutting large pieces of wood, slicing veneers, and cutting book matched panels

Heavy duty tubular steel welded construction

Dual 4” dust ports for maximum dust collection efficiency

Independently adjustable, upper and lower ball bearing blade guides

Convenient 115V AC outlet location for optional accessories

Engineered die-cast and steel trunnion system, allows for single point adjustments when moving table

Larger machined aluminum fence surface with easily visible measurements for the most accurate cutting

Robust stamped steel doors with welded steel pin hinges for greater product durability

Blade tensioning wheel located on top of the saw for better work piece clearance when cutting

Oversized lower bearing bolt pattern for maximum strength and rigidity

Heavy duty base for maximum stability when sawing large work pieces


Band Saw Size/Wheel Diameter (In.) 14

Cutting Capacity Width (In.) 13-1/2

Cutting Capacity Height (In.) 13

Blade Length (In.) 116

Blade Speed (SFPM) 3000

Table Size (L x W) (In.) 21 x 17

Maximum Saw Blade Width (In.) 3/4

Minimum Saw Blade Width (In.) 1/8

Table Tilt (Deg.) 45 Right

Table Height from Floor (In.) 40

Table T-Slot (In.) 3/4 (x2)

Dust Collection Minimum CFM Required (CFM) 350

Dust Port Outside Diameter (In.) 2 x 4

Motor Power (HP) 1.75

Stand Type Closed

Motor Phase (PH) 1

Motor Voltage (V) 115/230

Prewired Voltage (V) 115

Motor Amps 15/7.5

Recommended Circuit Size (Amps.) 20
