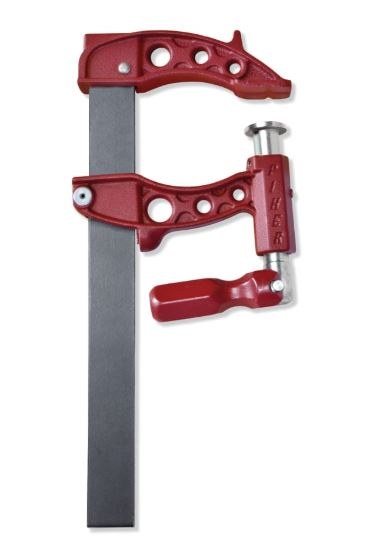

12" F Piston Clamp 5" Throat

Maxipress F Piston Clamp, 12 in Opening, 5 in Throat Depth, 9,000 N Capacity

Product Details:
Rolled spring steel bar provides maximum pressure held throughout the whole job

Fixed jaw surface is grooved to achieve maximum grip

Spring activated back brake keeps moving jaw firmly in position

Covered double-threaded screw doubles both pressure and speed with a greasing hole for optimum lubrication

Dismountable, interchangeable easy grip handle

Specifications:
Bar Thickness .3 in
Bar Width 1.4 in
Body Material Nodular Cast Iron Jaws; Heat-Rolled Steel Bar
Brand PIHER
Country of Origin Spain
Handle Type Dismountable; Interchangeable; Nylon and Fiberglas
Load Cap. [Nom] 9,000 N
Opening Size [Max] 12 in
Spindle Diam 1.1 in
Throat Depth [Nom] 5 in
Wt. 5.2 lb
