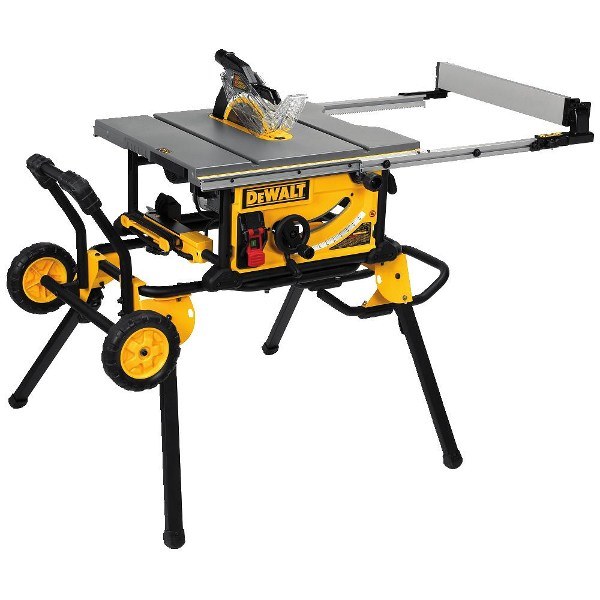

10" WHEELED JOBSITE TABLE SAW

10" Jobsite Table Saw 32 - 1/2" (82.5cm) Rip Capacity, and a Rolling Stand

Includes:

• 10" 24-Tooth Carbide Blade

• Rolling Stand (DWE74911)

• Push Stick

• Miter Gauge

• Rip Fence

• 2x Blade Wrenches

• Blade Guard Assembly

Features:

• Rack & Pinion Telescoping Fence System Make fence adjustments fast, smooth and accurate




• Patented material support, can be used for narrow rip cuts.




• 32-1/2" rip capacity easily cuts a variety of larger shelving and trim materials




• Onboard storage system provides easy access to the Blade Guard Assembly, fence, riving knife, miter gage, wrenches, push stick, and cord wrap when not in use.




• Rolling stand designed for easy set up and breakdown with excellent stability




• Telescoping fence rails retract to create a small, portable package




• Flip over ripping fence allows for narrow rip cuts




• 15 amp Motor quickly rips through hardwoods with ease




• 2-1/2" Dust Collection Port easily connects to a vacuum for efficient dust extraction




• 3-1/8" depth-of-cut at 90 and 2-1/4" at 45




• 21-7/8" X 26 - 3/8" table provides superior material support

Specifications:

• Blade Diameter: 10"

• Amps: 15 Amps

• No Load Speed: 4800 rpm

• Arbor Size: 5/8"

• Dust Port Diameter: 2-1/2"

• Depth of Cut at 90°: 3-1/8"

• Depth of Cut at 45°: 2-1/4"

• Max Rip To Right Of Blade: 32-1/2"

• Max Rip To Left Of Blade: 22"

• Max Width of Dado: 13/16"

• Tool Weight: 90 lbs

• Power Tool Type: Corded
