10" COMPOUND MITER SAW

10" Compound Miter Saw

Includes:

• (1) 10" x 5/8" 40T Micro-Polished Miter Saw Blade (A-93669)

• (1) Dust Bag (122852-0)

• (1) Triangular Rule (762001-3)

• (1) Vertical Vise (122536-0)

• (1) Socket Wrench (782232-8)

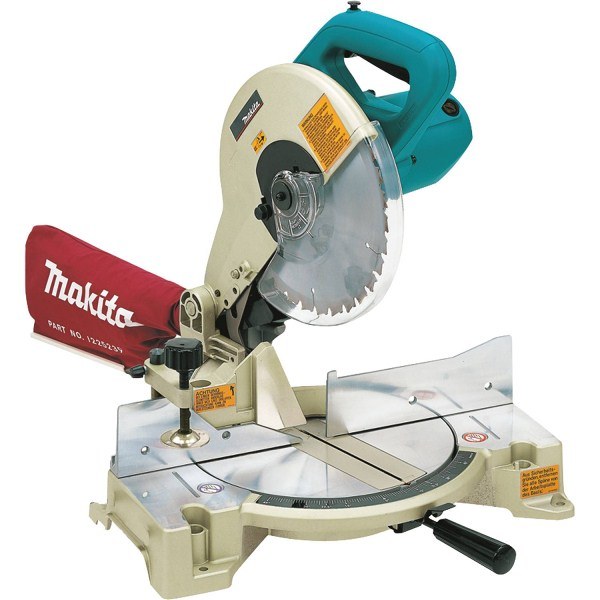

Makita’s 10” Compound Miter Saw (model LS1040) combines power, performance, and ease of use for most common miter cuts including a range of applications including woodworking, cabinetry, deck building, framing, and more.

15 AMP Motor for Improved Performance

The LS1040 has a dynamically balanced 15 AMP direct drive motor with 4,600 RPM for improved performance. The direct drive motor with soft start delivers smoother start-ups and constant power, with no belts to slip or replace.

Precise Miter and Bevel Cuts

The LS1040 has a dual post compound pivot arm, with bevel cuts up to 45° to the left. Miter adjustments range from 0°-45° (left) and 0°-52° (right), with 9 positive miter stops at 15°, 22.5°, 30°, and 45° (left or right), and 0° (90° cuts). The precision-machined aluminum base ensures accurate cuts. Ease-of-use and comfort features include a fluorescent light that works independently of the blade rotation to clearly illuminate the work surface, and a compact size (weighs only 27.3 lbs.) for easy portability.

Best in Class for a Range of Applications

The LS1040 is engineered for a broad range of trades, including finish carpenters, professional woodworkers, case and base installers, cabinet installers, decking and flooring applications, siding installers, general contractors seeking a best-in-class 10” compound miter saw for the jobsite or the benchtop.

Specifications:

• Blade Diameter : 10"

• Arbor : 5/8"

• Max. Cutting Capacity (miter 90°) : 2-3/4" x 5-1/8"

• Max. Cutting Capacity (miter 45°, L/R) : 1-3/8" x 3-5/8"

• No Load Speed : 4,600 RPM

• AMPS : 15

• Dimensions (LxWxH) : 20-7/8" x 18-3/4" x 21"

• Net Weight : 27.3 lbs.

• Stand included : No

• Bench & Stationary Tool Type :
• Compound miter saw

• Power Type : Corded
