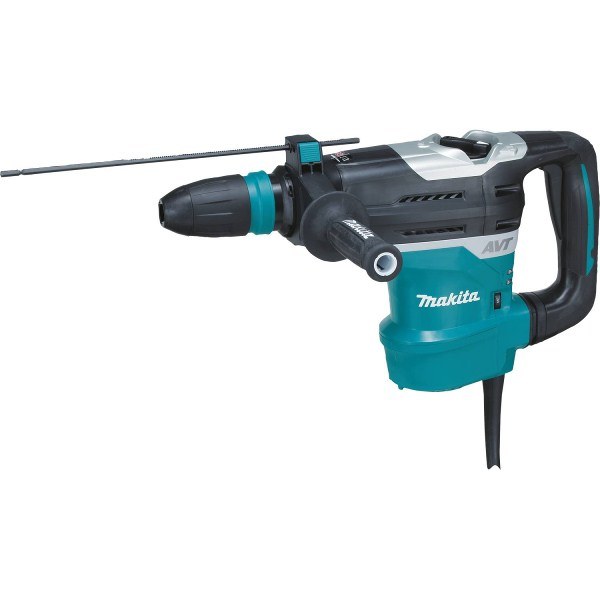

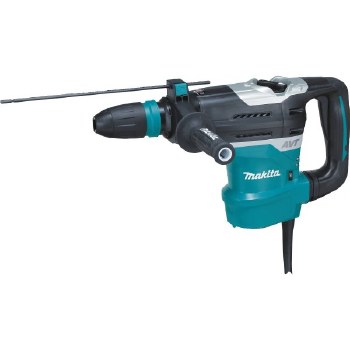

1-9/16" AVT ROTARY HAMMER SDS

1-9/16" Advanced AVT® Rotary Hammer, accepts SDS-MAX bits

Includes:

• (1) D-Handle Assembly, HR4013C (196792-8)

• (1) DEPTH ROD, HR4013C (331955-1)

• (1) Side Handle Assembly (123138-5)

• (1) Hammer Bit Grease (194683-7)

• (1) CLOTH F/WIPING OIL (443122-7)

• (1) Accessory Case (0000)

The 1-9/16” AVT® Rotary Hammer (model HR4013C) has 45% less vibration and 20% more impact energy than the previous model. It is engineered with enhanced Anti-Vibration Technology (AVT®), a synchronized three-component system for significantly less vibration. The result of the enhanced AVT® is a category-leading vibration rating of 5m/s².

The powerful 11 AMP motor delivers 8.4 ft. lbs. (11.4 Joules) of impact energy, 20% more than the previous model for faster drilling. An added feature is the option of lock-on or trigger-activated in the “chipping only” mode, with a push button start/stop control for more convenient operation.

The HR4013C is engineered for a range of concrete applications including drilling/coring through-holes for pipes, setting larger anchors, securing tilt-wall supports, small chipping applications, and more. It is ideal for a range of trades including masons, concrete contractors, demolition contractors, plumbers, electricians, sprinkler installers, and general contractors seeking a best-in-class rotary hammer.

Specifications:

• AMPS : 11

• Max. Capacity (concrete drilling) : 1-9/16"

• Optimum Range (concrete drilling) : 5/8" - 1-1/4"

• Max. Capacity (concrete drilling w/ core bit) : 4-1/8"

• Impact Energy (Joules) : 11.4 J

• Impact Energy (ft.lbs.) : 8.4

• Vibration (m/s²) : 5

• Blows Per Minute (variable speed) : 1,450 - 2,900 BPM

• No Load Speed (variable speed) : 250 - 500 RPM

• Overall Length : 18-11/16"

• Cord Length (ft) : 15.6'

• Net Weight : 15.1 lbs.

• Bit Type : Accepts SDS-MAX

• Power Type : Corded
