1/2M NPTx1/2F NPT TANK CK VALV

Picture may not depict actual size of product.

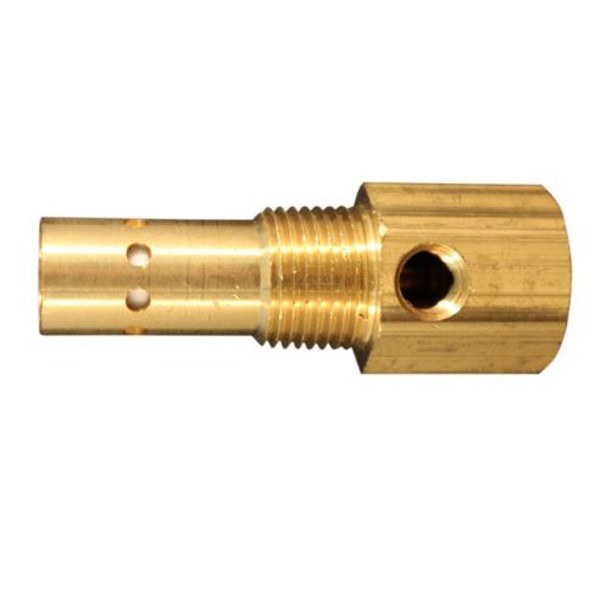

1/2" NPT Compressor Tank Check Valve

1/2" MNPT x 1/2" FNPT air compressor tank check valves are used to keep air volume and pressure from escaping back into compressor heads while not operating. The 1/8" FNPT side port is designed for pressure switch application. Maximum pressure of 450 PSI and up to 20 SCFM.

• 1/2" male national pipe thread x 1/2" female national pipe thread




• 1/8" female national pipe thread side port




• Maximum working pressure of 450 pounds per square inch




• Maximum 20 standard cubic feet per minute




• Maximum temperature of 400 degrees Fahrenheit
