1-1/8" SCREW PIN SHACKLE USA

1-1/8" Anchor Shackle, Screw Pin, Forged Carbon Steel, Painted Blue

Shackle Bodies Are Drop-Forged Carbon Steel

Self Colored (Painted Blue)

C-419-S Shackles Meet the Design
Requirements of Federal Specification RR-C-271, Type IVA, Grade A, Class 2

Working Load Limit, Size, Manufacture Name, Date Code and USA Permanently Marked on Each Shackle
Statistically Tested for Impact Resistance, Tensile Strength, Hardness, Ductility and Fatigue

419 Series Shackles Meet or Exceed All Manufacturing Requirements of the ASME B30.26 ”Rigging Hardware”. These Include the Material Ductility Requirement (Section 26-1.1.2), the Design Factor Requirement (Section 26.1.2), the Identification Requirement (Section 26-1.5.1), and the Effective Temperature Range (Section 26-1.6.1). the Shackles Can Be Proof Tested in Accordance with Section 26-1.4

Certification Available Upon Request

6 to 1 Design Factor

Pins and Bolts Are Heat-Treated and Made of Alloy Steel

DO NOT EXCEED THE WORKING LOAD LIMIT

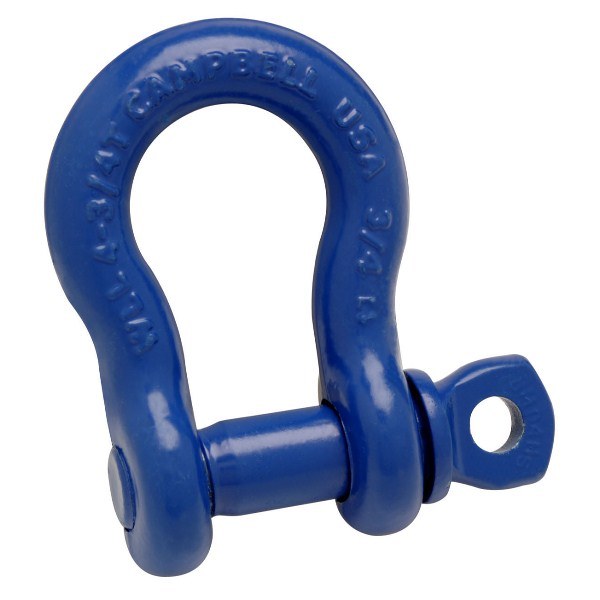

Image shown may not be actual product but represents product or set which includes product.
