1-1/2 T LEVER HOIST, 10' LIFT

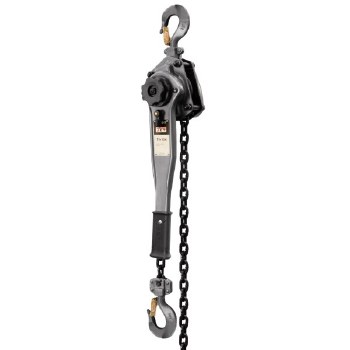

JLP-A Series 1-1/2 Ton Lever Hoist, 10' Lift

Features:

• Safety




• Patented brake wear indicator provides visual indication when to replace worn friction disks




• Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security




• Industrial rated alloy steel hooks rotate 360 degrees for easy rigging




• Hooks slowly stretch to indicate an overload situation increasing jobsite safety




• Durability




• Cast steel safety latches are secured with Allen screws and lock nuts




• Grade 80 black oxide coated for added durability




• Needle bearing design increases efficiency and promotes smooth operation




• Impact resistant all steel construction for added durability and protection




• Standards




• This product complies with ANSI / ASME B30.21 and HST-3 standards




• Load tested to 125% of capacity with certificate

Specifications:

• Load Capacity (Tons): 1-1/2

• Lift (Ft.): 10

• Overload Protection: No

• Ship Yard Hooks: No

• Headroom (In.): 15

• Handle Length (In.): 16-1/7

• Lever Pull Force (LBF): 49

• Lift per Turn (In.): 7/8

• Number of Falls: 1

• Load Chain Dimensions (Mm.): 8 x 24

• Hook Throat Opening (In.): 1-6/7

• Overall Width (In.): 6-7/9

• Weight (Lbs.): 27
