HD SOFT DOWN LID SUPPORT RH WT

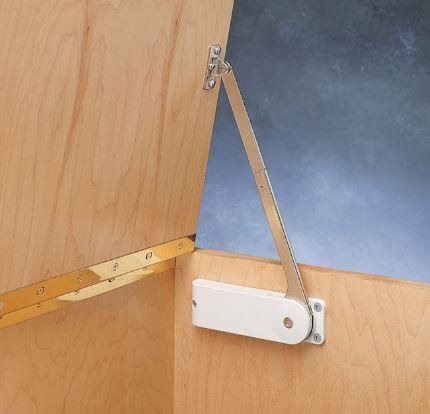

With a range of 60-86" /pound per support, these light-duty supports offer the security of gentle descent for applications with top-opening flap door. Suggested for applications with concealed, piano, or butt hinges. Designed to hold door in fully opened position.


With a range of 60-86" /pound per support and 121-173" /pound per pair (formula: lid wt. x front-to-back size ÷ 2 =" /pounds), these supports offer the security of gentle descent for applications with top-opening flap door. Opening to 70°, they are ideal for both overlay and inset lids. Requires 5-1/8" x 7/8" x 10-3/4" for mounting. Overall dimensions are 5-1/2" L x 1-5/8" High x 3/4" thick; arm is 10inches L when fully extended. Available in right- and left-handed.
