WALL DUST COLLECTOR

Wall Dust Collector

Descriptions:

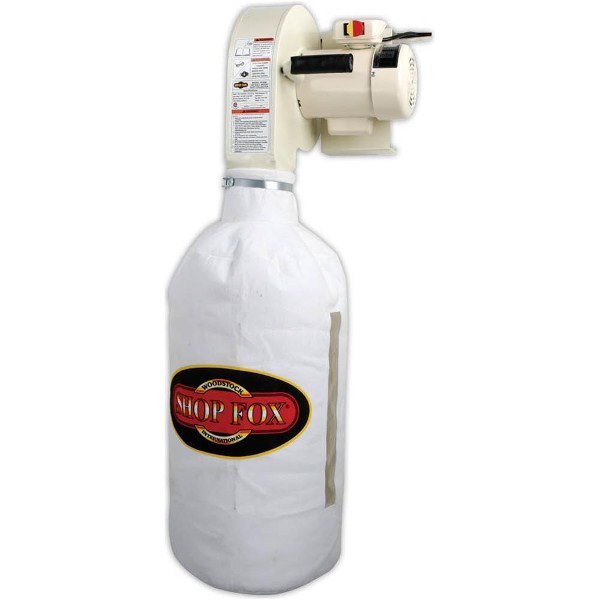

This wall-mounted Dust Collector is designed to capture dust right at the source, eliminating the reduced efficiency of a duct system. With 537 CFM capacity, it will handle just about any hungry woodworking machine, and without a complicated duct system, static pressure loss is minimal. A simple wall-mount bracket and locking screw system ensures you'll be safely up and running in no time! The bag filter features a window to gauge dust levels in the bag and a bottom zipper for easy cleaning.

Specifications:

• Motor: 1 HP, 120V/240V, single-phase, prewired 110V

• Motor amp draw: 7A/3.5A

• Air suction capacity: 537 CFM

• Static pressure: 7.2"

• Intake Hole Size: 4"

• Impeller: 10" balanced cast-aluminum

• Bag capacity: 2 cubic feet

• Bag size (diameter x depth): 13-1/2" x 24"

• Standard bag filtration: 2.5 micron

• Powder-coated finish

• Height with bag inflated: 44"

• CSA certified meeting CSA C22.2 #243-M91 and UL 1017 standards
