SEVEN FUNCTION ROUTER JIG

CRB7 COMBINATION ROUTER BASE – NEW MK3
ONE JIG – SEVEN FUNCTIONS – ONE GREAT PRICE

Offset Baseplate
Small Circle Compass
Anti Tilt Support
Adjustable Mortising
Large Circle Compass
False Panel Rebate Copier
Adjustable Clamp Guide
With Micro Adjustmen
What’s new with the MK3?

Driven by customer feedback and an obsession with product improvement.

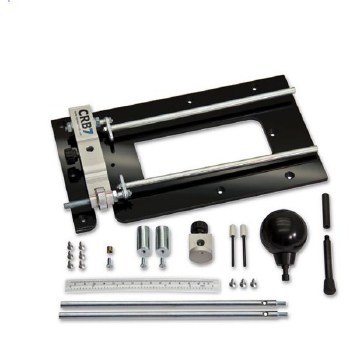

The CRB7 MK3 now includes:

Large Circle Compass Feature: A combination of the MK3's new aluminum Compass Hub and Guide Rods. Extends the CRB7's circle cutting range from 19'' to over 4ft/50” Dia. (225 – 1270mm). The circle diameter can also be micro adjusted without having to remove the router or assembly from its set-up.
Two pairs of Guide Rods: 9/32'' (7mm) diameter to fit routers with smaller rod drillings E.g. Porter Cable's 690 series and 5/16” (8mm) diameter to fit routers with larger rod drillings E.g. DeWalt 621.
Guide Rod Locking Bars: Improve the efficiency of the initial ‘‘set up” and reduce time taken when assembling the rods. Insert the Lock Bars into the Guide Rod drillings to tighten or loosen the assembly.
Tool Functions:
NEW Large Circle Compass: Cut circles over 4ft in diameter. Super
fast set-up means that the router doesn't even have to be taken from
the CRB7. Maintains the same level of precision, adjustability and
accuracy of cut that the CRB7 has always provided.

Adjustable Mortising: A unique feature that allows “Centered and
Off Centered” mortises. Decide on and precisely control the actual
dimensions of the mortise.

Anti Tilt Support: Another first, variable height triangulated
stabilization. Usually most of the router base remains unsupported
when edge routing. The CRB7 Anti Tilt Leg supports the router
eliminating router tilt, especially important when routing work pieces
with a high aspect ratio.

Small Circle Compass: Route precision circles and holes that are
actually smaller than the base of the router. Micro Adjust the circle
dimension without disturbing the set up.
Min Radius: ¾” (19mm) Max Radius: 8.¾” (225mm)
Min Diameter: 1.½” (38mm) Max Diameter: 17.½” (450mm)
*Measured using a ¼” (6mm) straight router cutter.

Adjustable Clamp Guide: Run the CRB7 up against your clamp guide
to accurately route parallel dado’s along the length or width of your
work piece. The Micro Adjuster reduces clamp guide set up time.

Off Set Base Plate: Increases overall router stability, reducing errors
when edge molding by more than doubling the surface contact area
between router and work piece. CRB7 also positions the pivot hand
guiding the router toward the center of the panel, smoothing out the
router pass action, reducing the chance of burn marks.

Adjustable false panel dado copier: The CRB7 provides a simple
and exceptionally quick way of accurately repeating a molded dado.
Ideal for production batch quality faux or false panelling.

Edging & Dowell Trim Kit: Quick-fit the Trim Kit Riser Pad, to flush
trim hardwood lippings and dowels in one routing pass.
(Requires accessory kit)

Edge Guide Kit: Allows parallel dado’s up to an impressive 7.1/2" in
from the board edge. (a greater range than a regular edge guide
offers). Or edge mold decorative panels. Machined in solid clear
Perspex with mounting points for a false face piece.
(Requires accessory kit)
Tool Features:
Set up with speed and ease: Fitting the CRB7 to your favorite
router couldn’t be easier. The New Crank Plates and additional set of
Guide Rods allow the CRB7 to be fitted to any router with "through
rod drillings". Select the correct sized Rods for your router and the
Adjustable Crank Plates will adjust rod height and width simultaneously.

Quick Change: Unlike most router jigs, the CRB7 can be
fitted/removed in no time. No fiddly screws or special fitting plates
required.

New Locking Bars: Help to tighten and loosen the guide rods during
initial “Set Up'' and Large Compass assembly.

Indexed Micro Adjuster: Allows precise control over the router
cutter position. Knurled and indexed for ease of use.

2" Bakelite Ball Handle: Ergonomic design, comfortable to the
touch, allows for easy hours of consecutive use.

Indexed Rule: A self-adhesive Imperial/Metric rule, another
feature to ensure quick visual indication of the router cutter position.

Two Part Anti Tilt Leg: Supports and stabilizes the router when
edge routing. The two leg sections accommodate combinations of
router position and work piece thickness.

Magnetic Pivot Pin Storage: A no-loose home for this essential
component, safe and easily accessible whenever required.

Professional Grade Build: Made in the United Kingdom. The CRB7
is manufactured to the highest standards. Including hard anodized,
solid aluminum bridge, laser cut 3/16” (5mm) thick acrylic base
plate and precision turned steel and brass components.

2 Year Guarantee: Our extended guarantee is testimony to the
build quality of the CRB7 MK3 and ensures our customers can buy
in confidence.


CRB7 MK3 + EDGE TRIM KIT IN ACTION:
