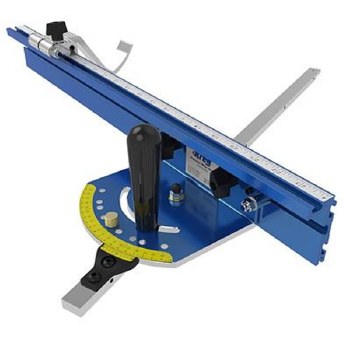

PRECISION MITER GAUGE SYSTEM

Precision Miter Gauge System

Includes:

• Miter Gauge

• 24" (610mm) Fence with scale

• zero-return stop

• Swing Stop with Precision Lens Cursor

• self-adhesive measuring tape

• owner's manual

One Miter Gauge with Everything You Need for Accuracy.

Features:

• Factory-calibrated; perfect right out of the box




• Positive stops at 0°, 10°, 221/2°, 30°, and 45° (degrees)




• Brass pin allows quick changes between positive stop angles




• 24" (610mm) bar with 5 bar adjusters eliminates "play" between the bar and miter slot




• 24" (610mm) Fence with Swing Stop and Self-Adhesive Measuring Tape

Specifications:

• Fence: 24" (610mm) aircraft-grade aluminum fence

• T-Slot Bar: 24" (610mm) long, 3/8" (9.5mm) thick, 3/4" (19mm) wide

• Positive Stops: 0°, 10°, 221/2°, 30°, and 45° (degrees)

• Vernier Scale: Adjusts to 1/10th of a degree

• Finish: Anodized for easy clean-up

• Calibration: Factory-calibrated; perfect right out of the box

• Weight: 6.5 lbs.
