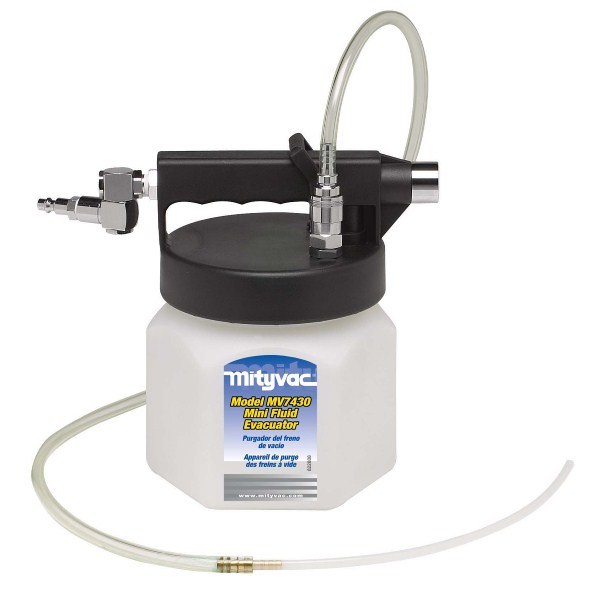

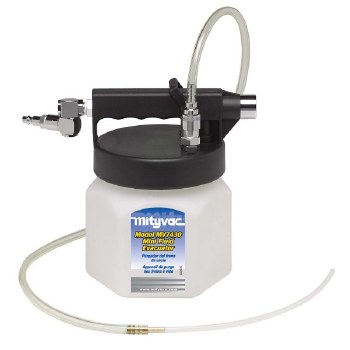

MINI FLUID EVACUATOR 1.8L

Operates on compressed air to create a powerful venturi vacuum for quickly evacuating small reservoirs. The lid unthreads for convenient emptying, and the evacuation hose is perfect for getting into those hard to reach places.

Includes:

• Fluid evacuator

• 4 ft (1.2 m) fluid evacuation hose

• Molded base w/ screws for bench mounting

• Hanging hook

• User's manual

Features:

• Compressed air operation




• Integrated 1.9 quart (1.8 liter) capacity reservoir




• Variable control thumb throttle




• Swivel air inlet




• Quiet, muffled exhaust




• Automatic overflow prevention

Specifications:

• Reservoir Capacity: 1.9 quars (1.8 liters)

• Working pressure: 60 – 150 psi (4.1 – 10.3 bar)

• Vacuum @ 90 psi (6.2 bar): 26 in. Hg (88 kPa)

• Air Consumption @ 90 psi (6.2 bar): 4.3 cfm (2.0 l/s)

• Flow Rate @ 60 psi (4.1 bar): 50 oz/min (1460 ml/min)

• Flow Rate @ 90 psi (6.2 bar): 70 oz/min (2100 ml/min)

• Flow Rate @ 150 psi (10.3 bar): 70 oz/min (2100 ml/min)

• Inlet Thread Size: 1/4" NPT
