JET

LAYDOWN BANDSAW, 10" x 18"

$4,699.00 $4,229.10 $469.90

add to cart
  add to list

*This item is not eligible for shipping. Pick-up in store only

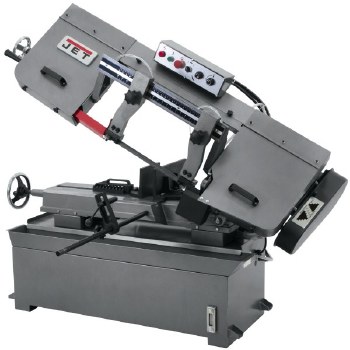

10" x 18" Horizontal Bandsaw



Includes:





Features:



  • Carbide blade guides feature parallel double-row ball bearing support


  • Coolant is distributed through the blade guides


  • Easy access chip tray allows quick cleanup


  • Blade is guarded, regardless of blade guide position


  • Large hand wheel and built-in gauge provides easy blade tensioning


  • Built-in, self propelled blade brush extends blade life


  • Quick-positioning vise with fully adjustable jaws, swivels up to 45°


  • Fully adjustable hydraulic downfeed with separate on/off control valve


  • Automatic shut-off after cut


  • Coolant system


  • Adjustable material stop


  • 1" Bi-Metal blade



Specifications:



  • Cutting Capacity (W x D) (In.): 10 x 18
  • Round at 90 Degrees (In.): 10
  • Round at 45 Degrees (In.): 7-3/4
  • Rectangle at 90 Degrees (In.): 10 x 16 and 6-1/2 x 18
  • Rectangle at 45 Degrees (In.): 10 x 7-1/2
  • Vise Swivels (Deg.): 45°
  • Blade Speeds (SFPM): 82, 132, 210, 330
  • Blade Wheel Diameter (In.): 14
  • Blade Length (In.): 130-1/2
  • Blade Size (In.): 1 x .035 x 130-1/2
  • Bed Height (In.): 23-1/2
  • Motor (HP): 2 HP, 230V Only, 1Ph
  • Weight (Lbs.): 704
  • Overall Dimensions (L x W x H) (In.): 69 x 28 x 42-3/4
