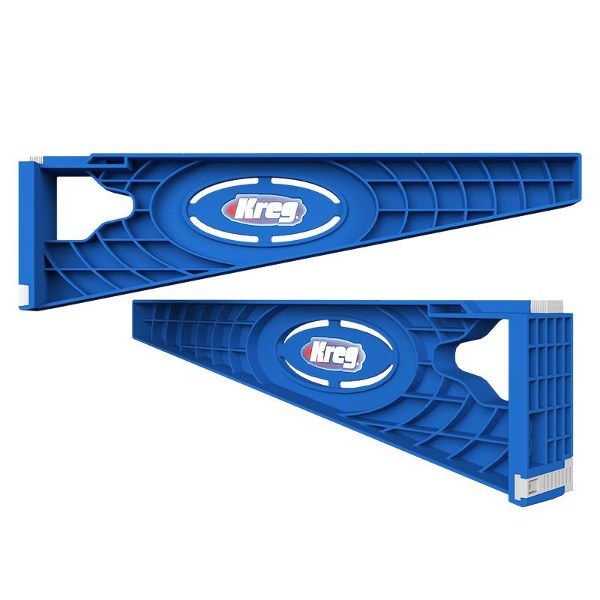

DRAWER SLIDE MOUNTING TOOL

Drawer Slide Jig

Includes:

• (2) brackets

• (4) upper/lower sliders—installed

• (1) owner’s manual

Features:

• Accurate slide positioning with built-in indexing tabs




• Repeatable results without measuring and marking




• Versatile for use in cabinets, cases, and more




• Reversible to mount slides to cabinet and drawer box




• Secure for holding slides in place as you work




• Strong, lightweight materials for easy handling

Specifications:

• Cabinet Compatibility: Face-frame and frameless

• Slide-Length Compatibility: 12" (30.5cm) and longer

• Slide-Type Compatibility: Ball-bearing, epoxy-coated, undermount

• Positioning Sliders: Two per bracket

• Minimum Cabinet Depth: 14" (35.5cm)

• Clamping Positions: Multiple
