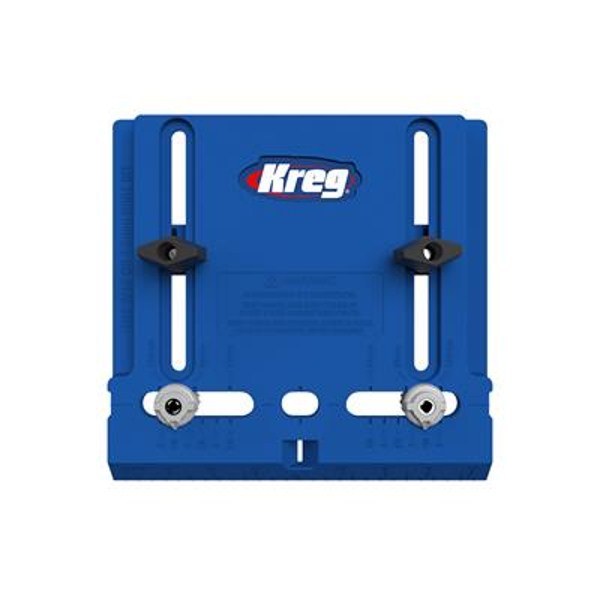

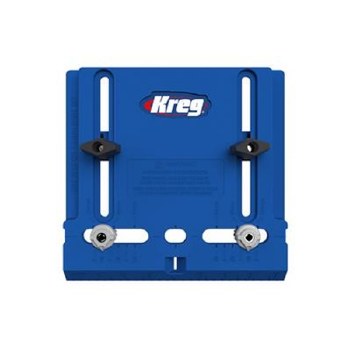

CABINET HARDWARE JIG

Cabinet Hardware Jig

Includes:

• (1) jig base

• (1) edge guide

• (2) drill guides with knurled nuts

• (2) non-slip pads

• (2) T-knobs and bolts

• owner’s manual

Features:

• Adjustable guides for accurate hole placement




• Built-in measuring scales for repeatable results




• Versatile for mounting single and multi-hole knobs




• Adjustable edge guide for easy positioning




• Strong, lightweight materials for easy handling




• Durable hardened-steel drill guides

Specifications:

• Construction: Durable polymer

• Drill Guides: Two movable 3/16" (5mm) guides with locking nuts

• Drill Guide Material: Hardened Steel

• Drill Guide Spacing: 21/2" (64mm), 31/4" (96mm), 5" (128mm)

• Edge Guide to Hole-Center Spacing: 1" to 5" (25mm-127mm)

• Measuring Scales: Imperial and Metric
