3-SPINDLE ELECTRIC POCKET

Special order item - please call our store.

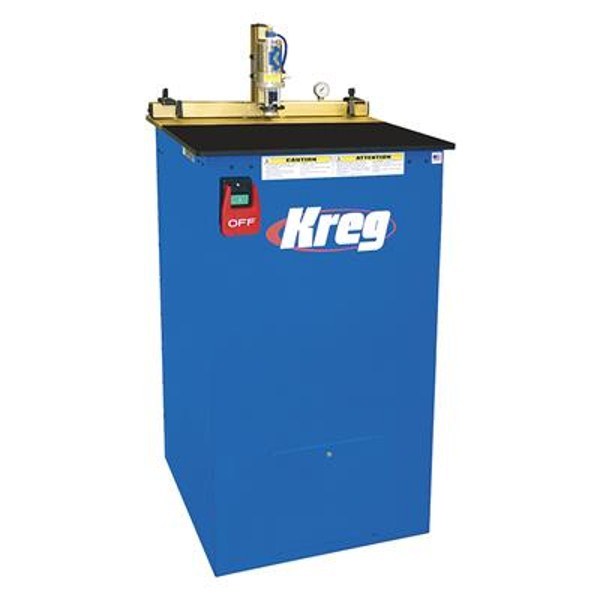

Multi-Spindle Pocket-Hole Machine

Includes:

• (1) Multi-Spindle Pocket-Hole Machine

• Complete Owner's Manual

Features:

• 3/4", 1", and 13/4" spindle spacings
  Hardened-steel drill guide maximizes drill bit life




• One-touch, foot pedal operation




• Swing Stops™ for optimized material positioning




• Dust collection chutes for efficient chip removal

Specifications:

• Motor: Electric, 11/2"-HP, 110-V single phase

• Drill Bits: DKDB Drill Bit, 3/8" shank diameter, 3/16" pilot, 1/2"-long

• CFM Rating: 1 CFM clamp cylinder
  (90 PSI/minute)

• Cycle Time: 1 second

• Material Clamping Capacity : 4"

• Hole-Centering Capability: 1/2"- to 11/2"-thick material

• Weight: 176 lbs.

• Dimensions: 50"H x 24"W x 24"D
  (40" table height)

• On-Center Spindle Spacings: 3/4", 1", 13/4"

• Warranty: 5 Years
