3/4M NPTx3/4M TUBE TNK CK VALV

Picture may not depict actual size of product.

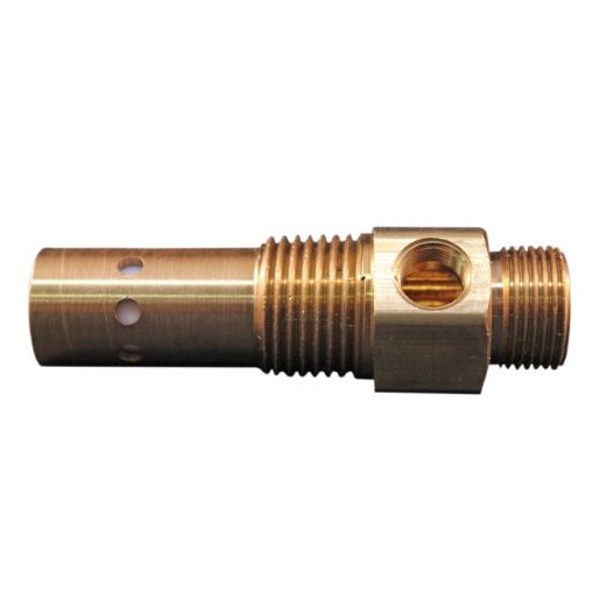

3/4" MNPT Compressor Tank Check Valve

3/4" MNPT tank check valves are used to keep air volume and pressure from escaping back into compressor heads while not operating. The 1/8" FNPT side port is designed for pressure switch application. Maximum pressure of 450 PSI and air flow of 30 SCFM.

• 3/4" male national pipe thread




• 1/8" female national pipe thread side port




• Maximum working pressure of 450 pounds per square inch




• Maximum 30 standard cubic feet per minute




• Maximum temperature of 400 degrees Fahrenheit
