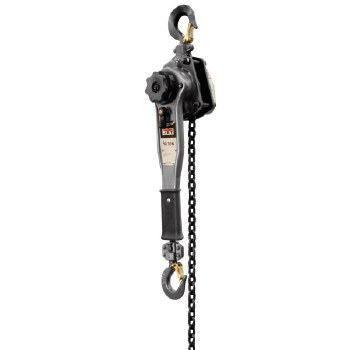

3/4 T LEVER HOIST, 20' LIFT

JLP-A Series 3/4 Ton Lever Hoist, 20' Lift

Features:

• Safety




• Patented brake wear indicator provides visual indication when to replace worn friction disks




• Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security




• Industrial rated alloy steel hooks rotate 360 degrees for easy rigging




• Hooks slowly stretch to indicate an overload situation increasing jobsite safety




• Durability




• Cast steel safety latches are secured with Allen screws and lock nuts




• Grade 80 black oxide coated for added durability




• Needle bearing design increases efficiency and promotes smooth operation




• Impact resistant all steel construction for added durability and protection




• Standards




• This product complies with ANSI / ASME B30.21 and HST-3 standards




• Load tested to 125% of capacity with certificate

Specifications:

• Load Capacity (Tons): 3/4

• Lift (Ft.): 20

• Overload Protection: No

• Ship Yard Hooks: No

• Headroom (In.): 12-4/5

• Handle Length (In.): 11

• Lever Pull Force (LBF): 31

• Lift per Turn (In.): 4/5

• Number of Falls: 1

• Load Chain Dimensions (Mm.): 6 x 18

• Hook Throat Opening (In.): 1-1/2

• Overall Width (In.): 5-5/6

• Weight (Lbs.): 22
