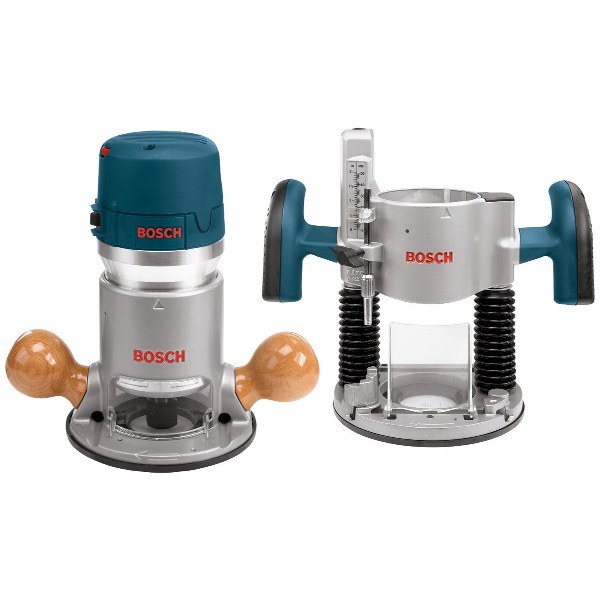

2.25HP PLUNGE ROUTER COMBO KIT

2.25 HP VS Router Combo Kit

Includes:

1/4" Self-Releasing Collet Chuck -- 2 610 906 283

1/2" Self-Releasing Collet Chuck -- 2 610 906 284

16mm Shaft Wrench -- 2 610 991 388

24mm Collet Nut Wrench-- 2 610 992 417

Carrying Case -- 2 610 913 367

Fixed Base (RA1161)

Plunge Base (RA1166)

Fixed Base Chip Shield -- 2 610 991 389

Plunge Base Chip Shield -- 2 610 912 599

Motor

T-Handle Hex Height Adjustment Wrench -- 2610923193

Pack of 3 10-24 Screws for Table Mounting - 2610925813

2.25HP/ 12 Amp motor 8,000-25, 000 RPM

Variable speed dial — for matching speed to workpiece and task

Soft-start — reduces start-up torque
Constant Response™ circuitry — maintains constant speed under load

Quick clamp system on both bases for fast tool-free conversion — move motor from base to base with ease

Precision centering design — makes it easy to keep bit on intended outline when using jigs, templets, dovetail fixtures and similar guidance devices

microfine bit depth adjustment system on both bases — for fast, precise bit depth adjustment

Wide base openings and 2 In. subbase openings — accepts larger bits & provides better visibility

Right or left switch location — for user preference and consistency (motor does not rotate during depth adjustment)

Contoured soft grip handles — for enhanced control and comfort

Double insulated

Now includes RA1161 fixed-base with system for adjusting bit height from above a router table

Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern

Rugged carrying case has compartments for all included items

Power switch - now includes dust-sealed power switch

Optional RA1126 Quick-Change Templet Guide Adapter (sold separately) — For fast and easy change of Bosch RA-Series templet guide (or threaded templet guides, if optional RA1100 adapter is also used.)

Amperage: 12

Base Diameter: 6" Fixed/ 6-11/16" Plunge

Case Type: Hard plastic

Collet Capacity: 1/4", 3/8", 1/2", 8 mm

Cord Length: 10 ft

FixedBase Depth Range: 1-5/8"

Max. Motor HP: 2.25

No Load RPM: 8,000-25,000

Plunge Depth: 2-1/4"

Rating: 120V AC

Used on Model No.: RA1171, RA1180, RA1181, RA1182, RA1200 Router Tables (Router in fixed base only).

Voltage: 120V

Warranty: Limited 1-Year Warranty
