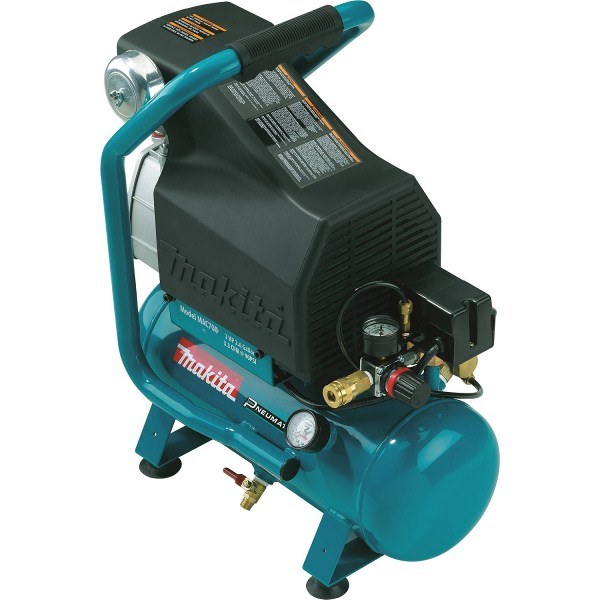

2 HP AIR COMP (HOT DOG)

2.0 HP* Big Bore™ Air Compressor

Includes:

• (1) Air Compressor Oil (181122-A)

• (1) 1/4" Universal Quick Coupler, Male (447013-E)

Features:

• Low Noise, Low AMP Draw and High Output




• Cast iron pump with Big Bore™ cylinder and piston is engineered to provide faster recovery time for improved performance




• Powerful 2.0 HP* 4-Pole motor produces 3.3 CFM at 90 PSI for increased productivity and lower noise




• Pump runs at lower RPM (1,730) resulting in lower noise (80dB) and improved pump durability




• Low AMP draw reduces incidences of tripped breakers at start-up




• Pump is oil-lubricated for cooler running temperatures and reduced wear




• Copper finned discharge tubing for increased heat dissipation and reduced water in the tank




• Roll-bar handle for portability and additional protection




• Large automotive style industrial air filter for increased air intake and greater efficiency




• Durable cast iron cylinder reduces wear and increases pump life; removable for easy maintenance




• Oil sight glass for fast, easy and efficient maintenance




• Lever-handle ball valve tank drain improves upon standard petcock design for easier maintenance and air tank release




• Built-in thermal overload for additional motor protection

Specifications:

• Maximum Horsepower: 2 HP

• Running Horsepower: 1.7 HP

• Tank: 2.6 gal.

• Performance (40 PSI): 3.8 CFM

• Performance (90 PSI): 3.3 CFM

• Maximum Pressure: 130 PSI

• Pump: Oil lubricated
