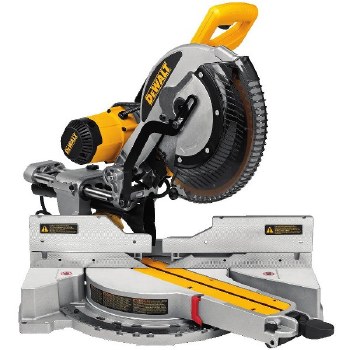

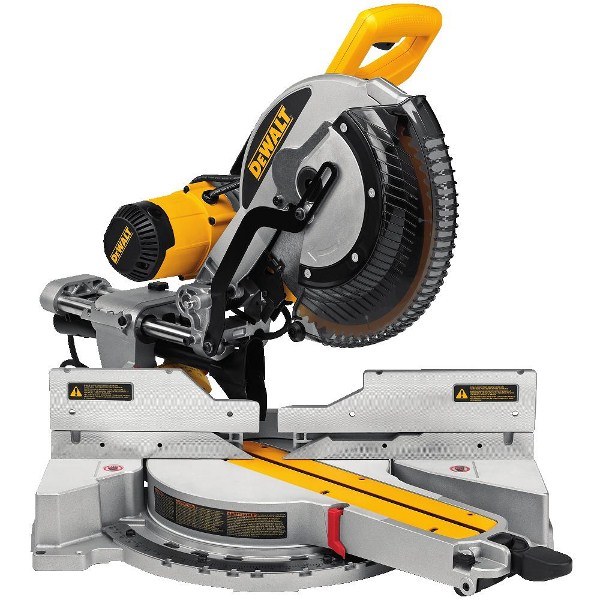

12" DBL BEV SLIDE MITER SAW

12" Double Bevel Sliding Compound Miter Saw

Includes:

• DWS780 12" Miter Saw

• Blade wrench

• Dust bag

• Vertical material clamp

• 12" Carbide Blade

Features:

• Integrated CUTLINE(TM) Blade Positioning System provides adjustment free cut line indication for better accuracy and visibility




• Powerful 15 amp, 3,800 rpm motor delivers extended power and durability




• Super efficient dust collection system captures over 75% of dust generated




• Tall sliding fences support crown molding up to 7-1/2" nested and base molding up to 6-3/4" vertically against the fence while easily sliding out of the way for bevel cuts




• Exclusive back fence design cuts up to 2x16 dimensional lumber at 90° and 2x12 at 45°




• Adjustable stainless steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy




• Miters 60° to the right and 50° to the left providing increased capacity




• Oversized bevel scale makes bevel angle adjustments accurate and easy




• Compact, lightweight design (56 lbs.) allows for easy transport and storage




• Cam lock miter handle with detent override deliver quick and accurate miter angles




• Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw




• Innovative gearbox and belt-drive design increases vertical cutting capacity




• Precise miter system and machined base fence support optimize durability and cutting accuracy

Specifications:

• Type of Miter Saw: Slide

• Blade Diameter: 12"

• Handle Type: Top Handle

• For Metal Cutting: no

• For Wood Cutting: true

• Amps: 15 Amps

• No Load Speed: 3,800 rpm

• Arbor Size: 5/8" or 1 in

• Vertical Capacity - Baseboard Against Fence: 6-3/4 in

• Vertical Capacity - Crown Molding Vertically Nested: 7-1/2 in

• Horizontal Capacity - Baseboard Lying Flat: 16 in

• Horizontal Capacity - Crown Molding Lying Flat: 13-3/4 in

• 45° Bevel Cut Capacity (dimensional lumber): 2x14 (2x16 with back fence)

• 90° Cross-Cut Capacity (dimensional lumber): 2x14 (2x16 with back fence) in

• 90° Cross-Cut Capacity (Max Width): 14" (16" w/ special setup)

• 45° Miter Cut Capacity (Max Height): 4x8

• 45° Miter Cut Capacity (Max Width): 4x8

• Tool Weight: 56 lbs

• Power Tool Type: Corded
