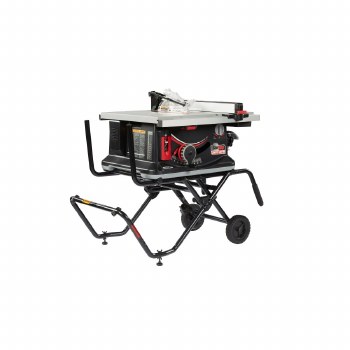

JOBSITE PRO SAWSTOP

Upgrades include Deeper Table, Active Dust Collection Blade Guard, & T-Glide High/Low Fence

Model Option:10" Jobsite Saw PRO: 1.5HP (4.0HP MAX), 120VAC, 60Hz. Inc. jobsite mobile cart & high/low fence system
Motor Configuration:120 VAC 60 Hz, Universal
Amperage:15A
Motor Peak HP4 HP
Motor Continuous HP1.5 HP
No Load RPM:4,000
Restart ProtectionYes
Cord Length:116"
Saw Dimensions without Cart:31-3/4" W x 28-3/4" D x 15-1/2" H
Saw Dimensions with Open Cart:48" W x 29" D x 36" H
Saw Dimensions with Closed Cart (on End):26-1/2" W x 29" D x 45" H
Table Dimensions (Retracted):31-1/4" W x 24-5/8" D
Table Dimensions (Extended):43-3/8" W x 24-5/8" D

SHIPPING:
US48 $200
ALASKA & HAWAII: $300.00
Shipping Dimensions:32" W x 43" D x 26" H
Weight (Saw Only):84 lbs
Weight (with Cart):113 lbs
Shipping Weight (with Cart):137 lbs
Blade Diameter:10"
Dado Diameter:8"
Dado Max. Width:13/16"Bevel Angle Range:-1 to 46
Blade Tilt:Left
Max. Depth of Cut, Blade at 0º:3-1/8"
Max. Depth of Cut, Blade at 45º:2-1/8"
Max. Rip Right of Blade (Extended):25-1/2"
Max. Rip Left of Blade:9-3/4"
Arbor Diameter at Blade:5/8"
Main Bearing Size:62mm OD x 30mm ID x 16mm W
Second Bearing Size:52mm OD x 25mm ID x 15mm W
Table in Front of Blade (Max Elev):7-7/8"
Table Behind Blade (Max Elev):7-3/8"
Miter Slots T-shaped Dimensions:.754" W x .413" D; "T" .956" W x .157" THK
Dust Collection Port Diameter:2-9/16" Outside, 2-1/4" Inside
Riving Knife/Splitter Thickness:2.3mm (.090")
Active Dust Collection Blade Guard:polycarbonate, extends 1" right of blade
Blade Guard (Dust Collection) Port Diameter:1-11/16" Outside, 1-3/8" Inside
Hand Wheel:Effective diameter 6.3"
Belts:Poly-V static dissipative belt
Table Flatness Measured Diagonally:0.033" Inches

INCLUDED ITEMS
(1) COLLAPSIBLE ROLLING CART
(1) HIGH/LOW T-STYLE FENCE W/ERGOLOCK
(1) MITER GAUGE
(1) JSS ACTIVE DUST COLLECTION BLADE GUARD
(1) RIVING KNIFE
(2) BLADE WRENCHES
(1) PUSH STICK
(1) 10” BLADE
(1) STANDARD BRAKE CARTRIDGE
(1) USER’S GUIDE
(1) ASSEMBLY INSTRUCTIONS POSTER
(1) HARDWARE PACK
(1) 3MM HEX KEY
(1) 4MM HEX KEY
(1) 5MM HEX KEY

How SawStop Works:


The SawStop Jobsite Saw Pro delivers durability, innovation and precision with a design that’s built for the worksite. Take the world’s safest saw wherever the job takes you.
