JET

JWB-10, 10" OPEN STAND BANDSAW

$469.99 $422.99 $47.00

add to cart
  add to list

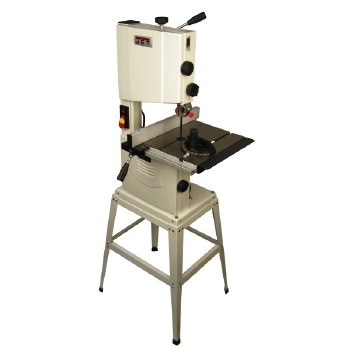

JWB-10, 10" Open Stand Bandsaw



Introducing the all new JET® 10" Band Saw. If space is at a premium in your shop, this is the bandsaw for you. With quick release blade tension, upper and lower ball bearing blade guides, an extra-large cast iron tilting table, and an easily adjustable LED work light - this well-equipped bandsaw has all the features you're used to on bigger bandsaws.



Features:



  • Compact benchtop design allows for easy transport to different shop locations


  • Rigid steel stand allows bandsaw to transition from the benchtop to the floor


  • Reinforced steel base can be bolted to stand or work bench


  • 1/2 HP induction motor easily handles various cutting applications


  • Poly-V drive system maximizes power transfer from motor to blade and reduces vibration


  • Upper and lower ball bearing blade guides provide blade stability


  • Extra large cast iron table with retractable extension wing provides additional work piece support


  • One piece welded frame design reduces machine vibration and flex


  • Oversized, ergonomic knobs provide ease of use and maximum control


  • Quick release blade tension makes changing and re-tensioning the blade fast, easy and consistent


  • Flexible LED light provides visibility without blocking line of sight


  • Aluminum extruded fence ensures smooth sliding action


  • Table tilting trunnion allows working angles from 0° to 45°


  • Magnifying cursor enlarges measurement scale for precise fence location


  • Rack and pinion blade guide adjustment with integrated locking knob for precise height control


  • Blade site window to view blade tracking


  • Dust port accepts multiple size hoses
    Miter gauge and fence included



Specifications:



  • Band Saw Size/Wheel Diameter (In.): 10

  • Cutting Capacity Width (In.): 9-1/2

  • Cutting Capacity Height (In.): 4-1/8

  • Blade Length (In.): 67-1/2

  • Blade Speed (SFPM): 2750

  • Table Size (L x W) (In.): 13-1/8 x 13-3/8

  • Table Size with Extension (L x W) (In.): 13-1/8 x 19

  • Maximum Saw Blade Width (In.): 1/2

  • Minimum Saw Blade Width (In.): 1/8

  • Table Tilt (Deg.): 0 to 45

  • Table Height from Floor (In.): 41-1/2

  • Dust Port Outside Diameter (In.): up to 4

  • Motor Power (HP): 1/2

  • Stand Type: Open

  • Motor Phase (PH): 1

  • Motor Voltage (V): 115

  • Motor Amps: 3.4
